  15. Limit Switch - GLL Series, SPDT, Plunger Actuator, 10A, IP65 Rated

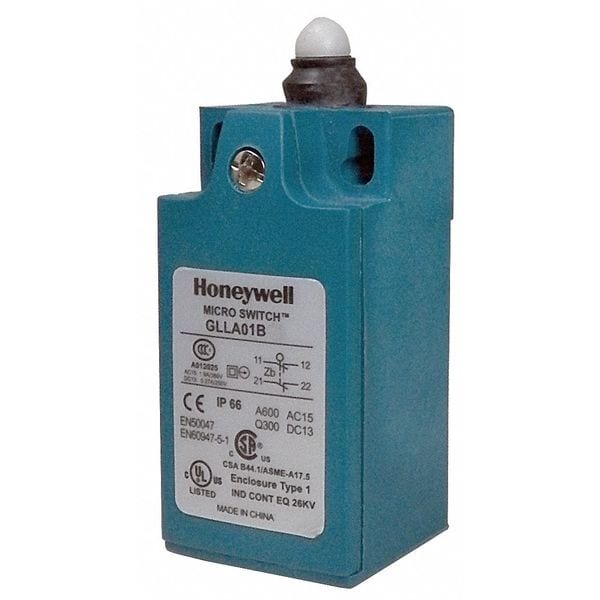

Honeywell Limit Switch - GLL Series, SPDT, Plunger Actuator, 10A, IP65 Rated GLLA01B - main

Limit Switch - GLL Series, SPDT, Plunger Actuator, 10A, IP65 Rated

  • Mfr # GLLA01B

  • Zoro # G3930263

product price: $32.89
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GLLA01B
Zoro #
G3930263
UPC #
-
Country of Origin
China

Dimensions

Actuator Length - Limit Switch
1.48 in
Actuator Length
1.48"
Body Height - Limit Switch
2.44 in
Body Width - Limit Switch
1.2 in
Height
1.22"
Depth
3.84"
Body Depth - Limit Switch
1.22 in
Width
1.20"
Body Height
2.44 in
Mounting Hole Diameter
0.17 in
Body Width
1.2 in
Body Depth
1.22 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
300VAC/250VDC
Body Style (Limit Switch)
Miniature
Contact Form - Limit Switch
1NC/1NO
Amps
10
Stem Thread - Limit Switch
No Stem
Actuator Location
Top
Electrical Connection
Screw Terminals
Basic Actuator Style (Limit Switch)
Plunger
DC Contact Rating
10A at 250V
Mounting Hole Spacing - Limit Switch
0.87 in
AC Contact Rating
10A at 300V
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Travel
Differential Travel 0.06 in, Maximum Pretravel 0.11 in, Minimum Over Travel 0.118 in
Operating Temp. Range
14 Degrees to 176 Degrees F
Series
GLL/GLS
Actuator Style
Plunger
Mounting Hole - Limit Switch
(2) 0.16 in dia
Number of Poles
1
Body Material
plastic
Movement
Linear
IP Rating
65
Limit Switch Style
General Purpose Limit Switch
Operating Force
2.22 in-lb
Contact Form
1NC/1NO, SPDT
Standards
CCC, CE, cULus
Boot Sealed Actuator - Limit Switch
No
Boot Sealed Actuator (Limit Switch)
No
Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 12, 13
Actuator Location (Limit Switch)
Top
Wiring Entry
1/2 in NPT
Differential Travel
0.06 in
Directional Movement
Linear
Pretravel
0.11 in
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13
Operating Torque - Maximum
2.22 in-lb
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
176 Degrees F
Body Configuration
Non Plug-In
Overtravel
0.12 in
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Honeywell MICRO SWITCH GLL Series limit switch features a double insulated, compact plastic housing with specified body dimensions. This general purpose limit switch includes both NC and NO contacts in an SPDT configuration. The device is compatible with linear movement; incorporates direct opening action on the NC circuit.

Key Features:

  • Contact Ratings: 10A at 300V AC; 10A at 250V DC
  • Actuator Style: Plunger, top-mounted; actuator length 1.48 in
  • Body Dimensions: Height 2.44 in, width 1.2 in, depth 1.22 in
  • Mounting: Surface mount with two horizontal holes (0.16–0.17 in diameter), spacing of 0.87 in center-to-center
  • Electrical Connection: Screw terminals; wiring entry via 1/2 in NPT
  • Travel Parameters: Differential travel of 0.06 in, pretravel of 0.11 in, overtravel minimum of 0.118 in
  • Operating Force/Torque: Maximum operating force/torque is 2.22 in-lb
  • Temperature Range: Rated for operation within the temperature range of 14°F to 176°F
  • Protection Ratings & Standards: IP65 rated enclosure; meets CCC, CE, cULus standards
