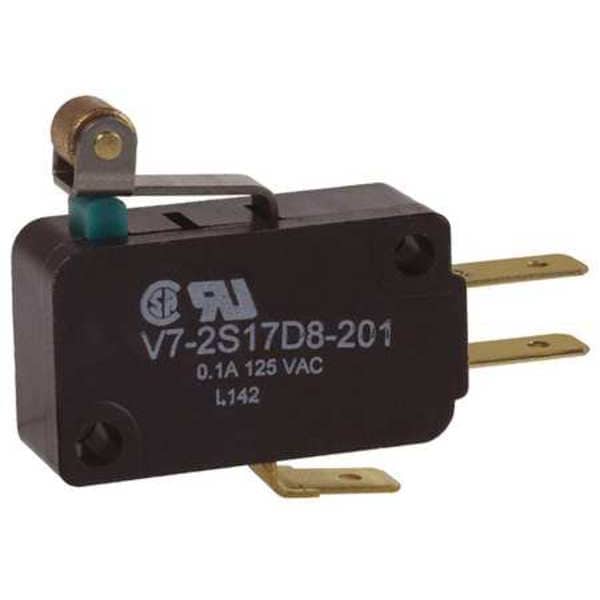

Honeywell Miniature Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 0.1 A at 125 V AC Contact Rating V7-2S17D8-201 - main

Miniature Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 0.1 A at 125 V AC Contact Rating

  • Mfr # V7-2S17D8-201

  • Zoro # G4630166

product price:  $7.89
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
0.1 A @ 125 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
0.82 in
Height - Snap Action Switch
0.63 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V7-2S17D8-201
Zoro #
G4630166
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
0.82 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Length
1.14"
Height
0.63"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Mounting Dimension
0.41 x 0.87" Centers
Depth
0.4"
Actuator Length
0.82"
Mounting Hole Diameter
1/8 in
Lever Actuator Length
0.82 in
Overall Depth
0.4 in
Overall Height
0.63 in
Body Width
1.14 in
Body Height
0.63 in
Body Depth
0.4 in
Overall Width
1.14 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
0.1 A @ 125 V
Contact Form- Switches
SPDT
Housing Material
PCT Polyester Thermoplastic
Voltage Rating
125VAC
Release Force
0.25 ozf
Differential Travel
0.015 in
Operating Force
0.88N
Current Rating
0.1A
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Watertight - Snap Action Switch
No
Series
V7
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Over Travel
1 mm
Type of Actuator
Short Roller Lever
Contact Form
1NO/1NC
Max. Pretravel
1.19 mm
Standards
CSA, ENEC, RoHS, UL Listed
Terminal Type
Quick Connect
AC Contact Rating
0.1 A @ 125 V
Pre-Travel - max
0.047 in (1.19mm) PT
Over-Travel
0.04 in (1mm) OT
Head
Roller Lever
Operator Configuration
Standard
Head Action
Spring Return, Standard
Force to Operate
3.17 oz (0.88N) OF
Contact Rating
0.1A 125V AC
Type
Miniature Limit Switch
Differential-Travel - max
0.015 in (0.38mm) DT
Operating Temperature
-40°F (-40°C) to 180°F (82°C)
Connection
Quick Connect Terminal
Poles/Contacts
SPDT 1NO 1NC
Pretravel
0.047 in
Center Mounting Hole Distance
0.88 in
Differential Travel - Maximum
0.015 in
Actuator Style
Roller Lever
Operating Force - Maximum
3.17 ozf
Overtravel
0.04 in
Body Material
Polyester
Electrical Connection
Quick Connect
Operating Temperature - Maximum
365 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Miniature Snap Action Switch, Lever, Roller, Short, AC Contact Rating - Snap Action Switch 0.1 A @ 125 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 0.82 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V7
