Shop EATON

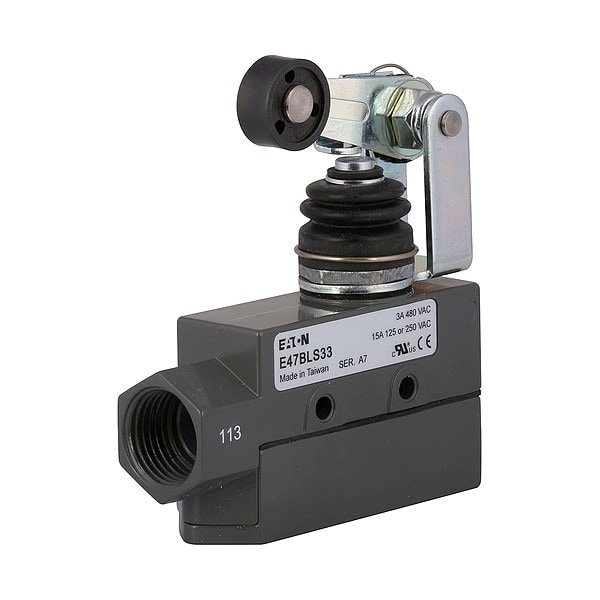

Snap Action Switch, Aluminum, Nylon

  • Mfr # E47BLS33
  • Zoro # G213321777
product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Operating Force - Minimum
2.26 N
Overall Height
4 in
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Operating Force - Maximum
6.28 N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS33
Zoro #
G213321777
UPC #
782113771120
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
4 in
Overall Width
1 in
Manufacturer Warranty Length
1 yr
Overall Depth
3.39 in
Roller Diameter
0.75 in
Lever Actuator Length
1.56 in
Roller Width
0.32 in
Actuator Length
1.56 in
Arm Length - Maximum
1.56 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Operating Force - Minimum
2.26 N
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Operating Force - Maximum
6.28 N
Operating Temperature - Minimum
-13 Degrees F
Body Material
Aluminum
Series
E47
Electrical Connection
Screw Terminal
Contact Form
1NO/1NC
Includes
Booted Roller Lever
Pretravel
0.016 in
DC Contact Rating
6 A @ 30 V
Actuator Style
Hinged Roller-Plunger
Release Force
22.58 ozf
Standards
CSA, UL Listed
AC Contact Rating
15 A @ 250 V
Roller Material
Nylon
Overtravel
0.236 in
Roller Adjustability
Fixed
Differential Travel - Maximum
0.016 in
Roller Position
Top
IP Rating
IP23
Directional Movement
Linear
Number of Mounting Holes
2
Over Travel - Linear
0.236 in
Body Configuration
Non Plug-In
Mounting Hole Horizontal Center to Center Distance
1 in
Action
Momentary
Switch Structure
SPDT
Pre-Travel - Linear
0.016 in
Mounting Style
Surface
Boot Sealed Actuator
Boot Included
Differential Travel - Linear
0.016 in
Includes Actuator
Actuator Included
NEMA Enclosure Rating
1

Description

Snap Action Switch, Series E47
