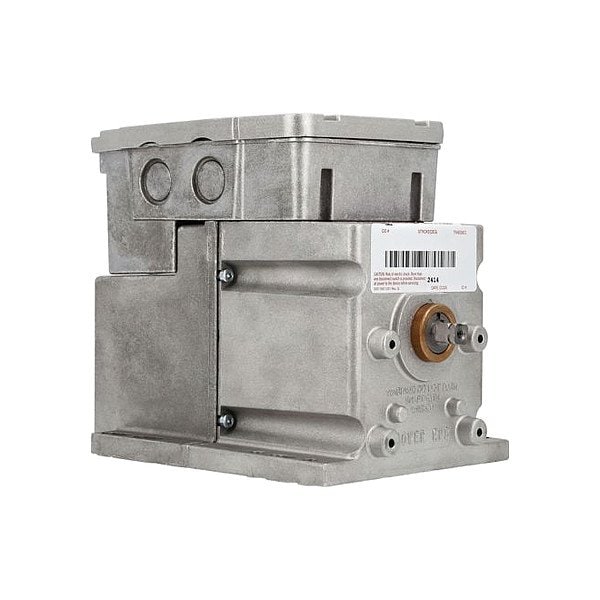

Modutrol Actuator, 5.5 in W
- Mfr # M7285C1009/U
- Zoro # G516381522
product price:Â
$
1,847.99
/ea
Free Shipping & Returns
Key Features
Voltage
2 to 10V DC
Stroke Degree
160 Degrees
Operating Temperature - Minimum
-40 Degrees F
Control Signal
Proportional
Standards
UL File No. E4436, Guide No. XAPX for USA and Canada
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- M7285C1009/U
- Zoro #
- G516381522
- UPC #
- 085267058025
- Country of Origin
- United States
- Item
- Modutrol Actuator
- Voltage
- 2 to 10V DC
- Stroke Degree
- 160 Degrees
- Operating Temperature - Minimum
- -40 Degrees F
- Control Signal
- Proportional
- Standards
- UL File No. E4436, Guide No. XAPX for USA and Canada
- Cycle Time
- 30 sec
- Number of Auxiliary Switches
- 2
- Frequency
- 50 or 60 Hz
- Installation Orientation
- Horizontal
- Torque
- 60 lb-in
- Housing Material
- Aluminum
- Operating Temperature - Maximum
- 150 Degrees F
- Compatible Valve Action
- Normally Closed
- Return Action
- Spring Return
- NEMA Rating
- 3
- Power Consumption
- 20 VA
- Electrical Connection Type
- Quick Connect Terminals
- Input Voltage
- 2 to 10V DC
- Rated Torque
- 60 lb-in
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 150 Degrees F
- Application
- Dampers
Dimensions
- Overall Width
- 5 1/2 in
- Overall Height
- 6 1/2 in
- Overall Depth
- 8 3/4 in
Description
Modutrol Actuator, Rated Torque 60 lb-in, Input Voltage 2 to 10V DC, Electrical Connection Type Quick Connect Terminals, NEMA Rating 3, Stroke Degree 160 Degrees , Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 1/2 in, Application Dampers, Number of Auxiliary Switches 2
