  13. Snap Action Switch, Lever, Long, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

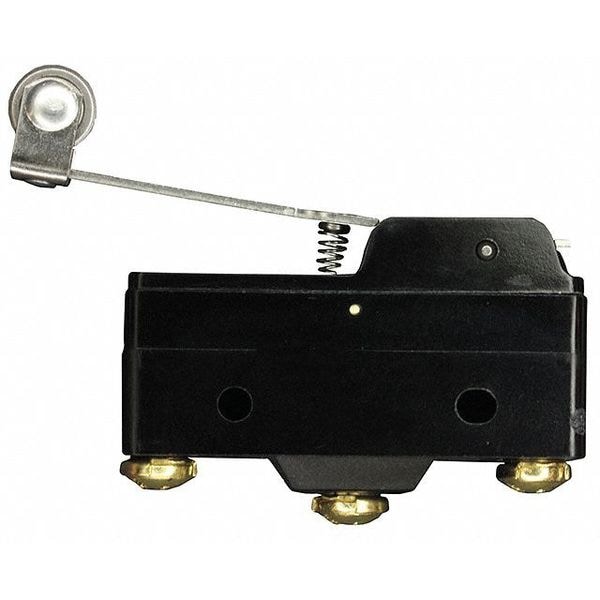

Honeywell Snap Action Switch, Lever, Long, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating BZ-2RW82-A2 - main

Snap Action Switch, Lever, Long, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # BZ-2RW82-A2

  • Zoro # G2412042

product price: $18.89
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.9 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RW82-A2
Zoro #
G2412042
UPC #
078454917335
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.9 in
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.07 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Actuator Length
1.90"
Mounting Dimension
1.00" Centers
Depth
0.069"
Height
0.95"
Body Depth
0.07 in
Body Height
0.95 in
Body Width
1.94 in
Overall Depth
0.07 in
Overall Width
1.94 in
Overall Height
0.95 in
Lever Actuator Length
1.9 in
Mounting Hole Diameter
1/8 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
No
Voltage Rating
125/250/480VAC
Differential Travel
0.004 to 0.040 in
Operating Force
3.5 oz
Standards
CE, CSA, ENEC, UKCA, UL Listed
Type of Actuator
Long Roller Lever
Series
BZ
Terminal Type
Screw
Contact Form
1NO/1NC
Over Travel
0.156 in
Operating Temp. Range
-67 Degrees to 185 Degrees F
Housing Material
Phenolic
Current Rating
15a
Max. Pretravel
0.218 in
Release Force
0.75 ozf
Electrical Connection - Snap Action Switch
Screw
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
15 A @ 125 to 480 V
Over-Travel
0.156 in (3.96mm) OT
Head Action
Spring Return, Standard
Head
Roller Lever
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Type
Basic Limit Switch
Operator Configuration
Standard
Contact Rating
15A 125-480V AC 0.5A 125V DC 0.25A 250V DC
Force to Operate
3.5 oz (0.97N) OF
Operating Temperature
-67°F (-55°C) to 185°F (85°C)
Connection
Screw Terminal
Differential-Travel - max
0.04 in (1mm) DT
Actuator Style
Roller Lever
Pretravel
0.218 in
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
185 Degrees F
Differential Travel - Minimum
0.004 in
Operating Force - Maximum
3.5 ozf
Body Material
Phenolic
Operating Temperature - Minimum
-67 Degrees F
Overtravel
0.156 in
Differential Travel - Maximum
0.04 in
Electrical Connection
Screw

Description

Snap Action Switch, Lever, Long, Roller, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.9 in, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.07 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
