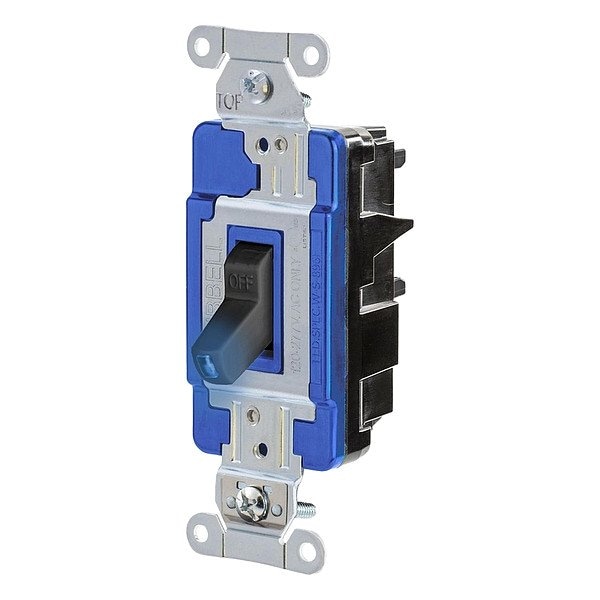

Wall Switch, 1/2 hp, Toggle, 15 A, Black

  • Mfr # HBL1203STILBK

  • Zoro # G716437692

product price:  $63.25
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Color
Black
Switch Function
Maintained
Wiring Method
Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1203STILBK
Zoro #
G716437692
UPC #
783585963822
Country of Origin
China

Dimensions

Overall Width
1.4 in
Overall Height
4.2 in
Switch Depth
1.5 in
Maximum Wire Size
10 AWG
Switch Height
4.2 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Color
Black
Switch Function
Maintained
Wiring Method
Back
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Standards
CSA Certified, Fed Spec, UL Listed
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Housing Material
Polycarbonate
Current Rating
15 A
Illuminated
Yes
Voltage Rating
120/277V AC
For Environment
Industrial
Grounding
Grounded
Market
Industrial
Contact Material
Silver Alloy
Strap Material
Brass
Wire Connection Type
Spring Clamp Terminals
Horsepower Rating
1/2 hp
Resistance Properties
Impact Resistant
Pilot Light
No
Nightlight
No
Number of Switches
1

Description

Wall Switch, Color Black, Current Rating 15 A, Illuminated Yes, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Impact Resistant, Standards CSA Certified, Fed Spec, UL Listed, Strap Material Brass, Switch Style Toggle
