  9. Connector, 3R, 4X, 12, Single Pin, 8-2

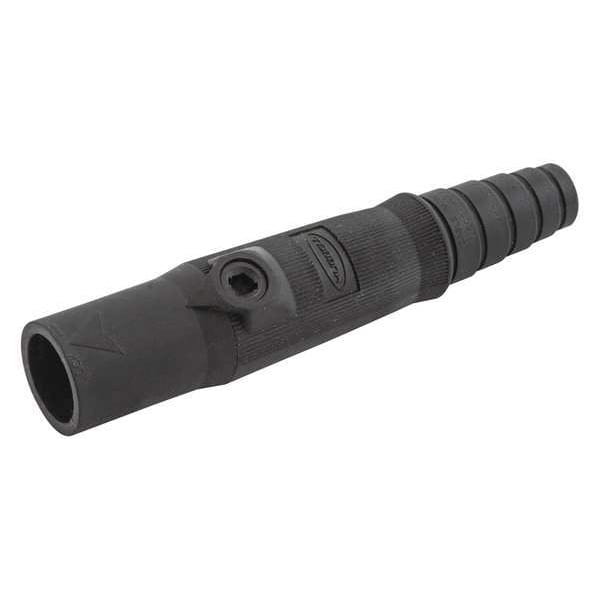

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Single Pin, 8-2 HBL15MBK - main

Connector, 3R, 4X, 12, Single Pin, 8-2

  • Mfr # HBL15MBK

  • Zoro # G6193241

product price: $32.69
/ea

Key Features

Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MBK
Zoro #
G6193241
UPC #
783585458328
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Width
1 in
Minimum Wire Size
8 AWG
Overall Length
4.54 in
Maximum Wire Size
2 AWG

Details

Item
Connector
Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Material
Thermoplastic Elastomer
Amps AC/DC
150AC/DC
Cable Range
8 to 2
Color
Black
Fits
UL1691
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Terminal Connection Type
Double Set Screw
Gender
Male
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Compatible with Series
15; Insulgrip
End Type
Taper Nose
Housing Color
Black
NEMA Enclosure Rating
12, 3R, 4X
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
150 A
Amperage Rating
150 A
Style
Male
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Connector, 3R, 4X, 12, Single Pin is a single pole male connector intended for use in temporary electrical power distribution. It features an Insulgrip® style housing and a double set screw terminal connection to accommodate wire sizes from #8 to #2 AWG. The connector is rated for up to 150A at 600V AC or 250V DC and is constructed with a thermoplastic elastomer housing and brass contacts for rated operation within the specified amperage and voltage ranges.


Key Features of the HUBBELL Connector, Series 15:

  • Amperage/Voltage Rating: Rated for up to 150A at 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #8 AWG to #2 AWG

  • Terminal Connection Type: Double set screw terminal connection accommodates conductors

  • Housing Material: Thermoplastic elastomer housing

  • Contact/Conductor Material: Brass contacts

  • NEMA Enclosure Ratings: For use with NEMA Types 3R, 4X, and 12 enclosures

  • Industry Standards: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard

  • Style/End Type: Taper nose design; male configuration with large raised alignment arrow aids mating of devices
