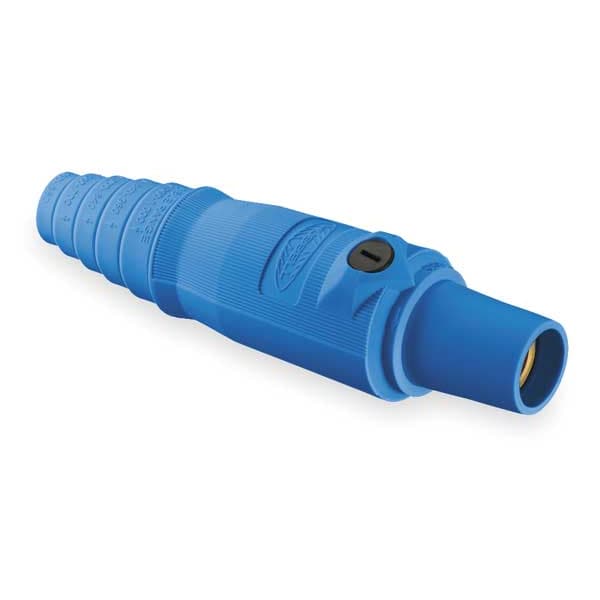

Hubbell Wiring Device-Kellems Connector, Double Set, Blu, 300AC/DC, Female HBL300FBL - main

Connector, Double Set, Blu, 300AC/DC, Female

  • Mfr # HBL300FBL

  • Zoro # G1462736

product price: $44.15
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
300 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL300FBL
Zoro #
G1462736
UPC #
783585112015
Country of Origin
China

Dimensions

Overall Length
7.1 in
Maximum Wire Size
2/0 AWG
Overall Width
1.95 in
Minimum Wire Size
6 AWG

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Single Pole Device Style
Taper Nose
Amps AC/DC
300AC/DC
Color
Blue
Conductor Material
Brass
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Cable Range
6 to 2/0
Amps AC
300 A
Contact Material
Brass
End Type
Taper Nose
Gender
Female
Housing Color
Blue
Terminal Connection Type
Double Set Screw
NEMA Enclosure Rating
12, 3R, 4X
Contact Type
Single Cam
UL 94 Flammability Rating
HB
Housing Material
Thermoplastic Elastomer
Compatible with Series
16
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Current / Amperage Rating
300 A
Style
Female
Amperage Rating
300 A
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Series 16 Double Set Female Connector is a single pole device designed for temporary electrical power distribution. It features a double set screw terminal connection and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector is rated for up to 300A at both AC and DC, with voltage ratings of 600V AC and 250V DC. Its construction includes a brass contact within a thermoplastic elastomer housing.


Key Features of the HUBBELL Series 16 Double Set Female Connector:

  • Amperage Rating: Rated for up to 300A (AC/DC)

  • Voltage Rating: Rated for operation at up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG

  • Terminal Connection Type: Double set screw terminal connection

  • Contact Material: Brass conductor and contact material

  • Housing Material: Thermoplastic elastomer housing provides resistance against impact and wear

  • NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirements

  • Industry Standards: Complies with NEC, ANSI/NFPA 70; UL Listed; cUL Listed standards

  • Taper Nose Style: Single cam taper nose configuration compatible with Series 16 devices
