  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

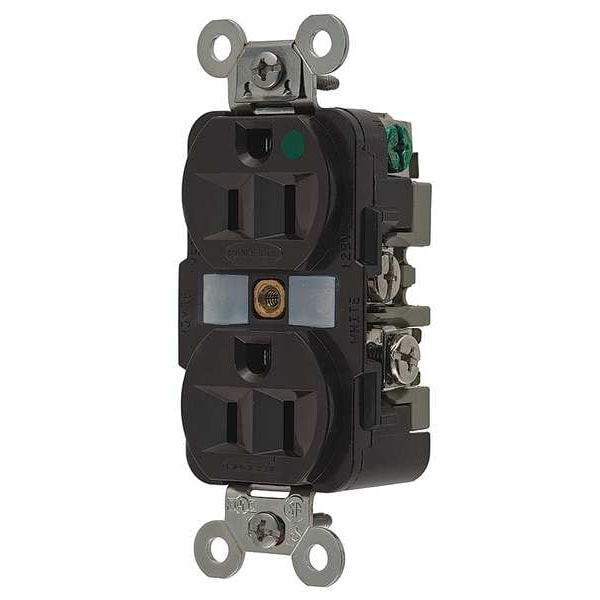

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200 - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200

  • Zoro # G2217774

product price:  $35.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200
Zoro #
G2217774
UPC #
783585435602
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Length
3.28 in
Width
1.65 in
Height
1.19 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
Brown
Weather Resistant
No
Application Environment
Heavy Use Hospital Grade
Outlet Type
Duplex
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
HP
1/2 hp
Material
Thermoplastic
Mounting Type
Flush
Voltage
125VAC
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Application
Extra Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Carton Quantity
10
Type
Duplex Receptacle
Amperage
15 A
Wattage
1875 W
Maximum Horsepower
0.5
Connectivity
Back and Side Wired Screw Terminals
Style
Thermoplastic polyester face
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Mounting Hardware Material
Screw Mounting
Series
Hospital Grade
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Polarized
Yes
Connection Orientation
Straight
Surge Protection
No
Contact Material
Nickel-Plated Brass
Grade
Hospital Grade Fed. Spec.
AFCI
No
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0
Cover Type
No Cover
Shrouded
No
GFCI
No
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V-0
Poles and Wires
2 Pole, 3 Wire
Device Color
Brown
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Grade
Heavy Duty Spec Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex outlet rated for use in hospital grade environments. It features a deep body design with circuit ID face and is constructed from impact-resistant thermoplastic material. This receptacle is UL Listed to UL498 File E2186 and includes bypass and ground contact designs to provide redundant grounding and increased contact pressure.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A, 125 VAC operation

  • NEMA Configuration: 5-15R, standard duplex outlet type

  • Wiring Method: Back and side wired screw terminals accommodate #14–#10 AWG copper wire

  • Contact Material: Nickel-plated brass contacts

  • Grounding System: Four-point grounding

  • Impact Resistance: Deep face design resists breakage in high-abuse areas

  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage

  • Flammability Rating: UL94 V-0 rated thermoplastic housing for enhanced resistance to ignition

  • Operating Temperature Range: -40°C (w/o impact) to +75°C continuous use

  • Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
