  6. Extra Heavy Duty Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Single Pole, 30A 120/277V AC, Back and Side Wired Toggle

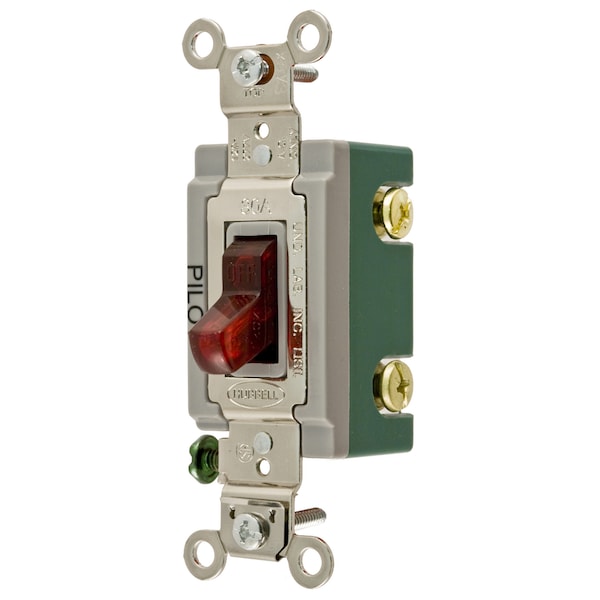

Hubbell Wiring Device-Kellems Extra Heavy Duty Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Single Pole, 30A 120/277V AC, Back and Side Wired Toggle HBL3031PL - main

Extra Heavy Duty Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Single Pole, 30A 120/277V AC, Back and Side Wired Toggle

  • Mfr # HBL3031PL

  • Zoro # G200701650

product price:  $55.95
/ea

Key Features

Switch Type
Pilot Single Pole
Color
Red
Width
1.31 in
Height
1.86 in
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3031PL
Zoro #
G200701650
UPC #
783585434544
Country of Origin
China

Dimensions

Width
1.31 in
Height
1.86 in
Length
4.06 in
Dimensions
4.06 in x 1.31 in x 1.86 in
Wire Size
#14 AWG to #10 AWG

Details

Switch Type
Pilot Single Pole
Color
Red
Type
Toggle
Voltage
120/277V AC
Style
Single Pole
Current Rating
30 A
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Connectivity
Back and Side Wired
Series
Extra Heavy Duty
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Indicator
Light On with Load On
Temp. Rise
30°C maximum at rated current
Amperage
30 A
Flammability
UL 94V-2
Switch Grade
Industrial
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Listing and Certifications
UL Listed and CSA Certified
Temperature Rise
30°C maximum at rated current
Nylon Wall Plate
NP1R
Max. Continuous Current
30A
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Handle Positions
2
Product Type
Toggle-switches
Toggle Color
Red
Wiring Style
Back and Side Wired
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Amperage Rating
30 A
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 30A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Industry Standard(s)
UL Listed
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
30 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, PilotLighted Extra Heavy Duty Industrial Grade, Toggle Switches, GeneralPurpose AC, Single Pole, 30A 120/277V AC, Back and Side Wired, Red
