  11. Flanged Locking Inlet, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, White

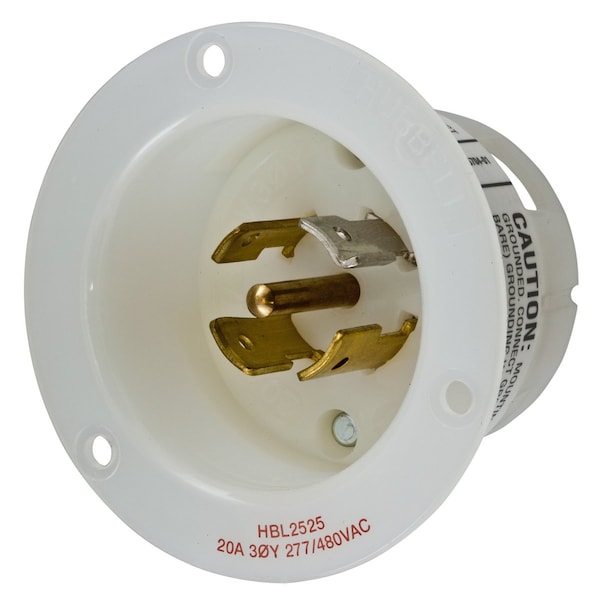

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, White HBL2525 - main

Flanged Locking Inlet, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, White

  • Mfr # HBL2525

  • Zoro # G400702310

product price: $69.19
/ea

Key Features

Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2525
Zoro #
G400702310
UPC #
783585038629
Country of Origin
United States

Dimensions

Wire Size
#12 AWG
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Width
3.06 in

Details

Item
Locking Plug
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Cover Type
No Cover
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Flange Material
Natural White Nylon
Special Features
Molded In or Stamped On
Material
Nickel-plated Brass Round head screws
Wiring Style
Standard
Application
Extra Heavy Duty Industrial
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Amperage Rating
20 A
NEMA Receptacle Configuration
L22-20P

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding,L22-20P, Screw Terminal, Whte
