  11. Flanged Locking Inlet, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White

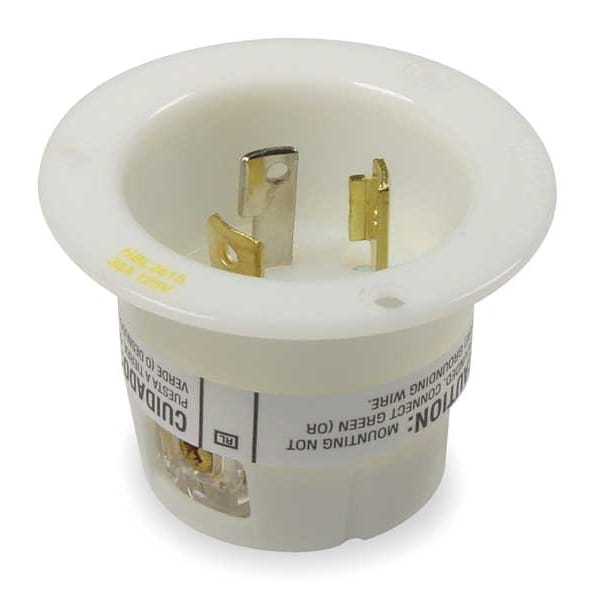

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White HBL2745 - main

Flanged Locking Inlet, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2745

  • Zoro # G3334922

product price: $64.40
/ea

Key Features

Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2745
Zoro #
G3334922
UPC #
783585039411
Country of Origin
United States

Dimensions

Face Plate Width
0.09 in
Maximum Wire Size
8 AWG
Face Diameter
2.23 in
Flange Diameter
3.06 in
Minimum Wire Size
16 AWG
Overall Depth
2.27 in
Wire Size
#10 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Width
3.06 in
Height
2.27 in
Length
3.06 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Grade
General Use
Boot Code
E
Material
Impact Modified PBT
Special Features
With Cover
Wiring Style
Standard
For Environment
Dry
NEMA Plug Configuration
L17-30P
Connection Orientation
Straight
For Location
Indoor
Horsepower Rating
10 hp
Includes
Mounting Screws
Minimum Operating Temperature
-40 Degrees F
Flange Material
Nylon
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Housing Material
Nylon
Number of Blades
4
Blade Material
Brass
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Insulation
Insulated Body
Amps
30
NEMA Rating
12, 4X
NEMA Configuration
L17-30
NEMA Receptacle Configuration
L17-30P

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
