  11. Flanged Locking Inlet, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, White

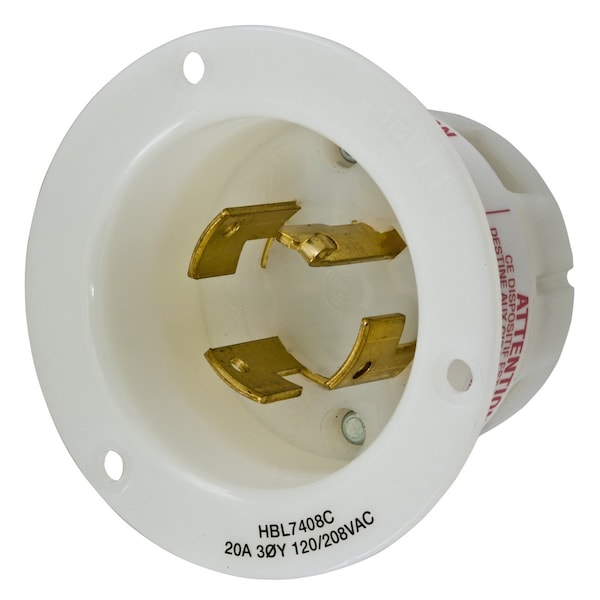

Hubbell Wiring Device-Kellems Flanged Locking Inlet, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, White HBL7408C - main

Flanged Locking Inlet, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, White

  • Mfr # HBL7408C

  • Zoro # G600702561

product price: $68.69
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7408C
Zoro #
G600702561
UPC #
783585037547
Country of Origin
United States

Dimensions

Wire Size
#16 AWG - #10 AWG solid or stranded copper wire only
Width
3.06 in
Length
3.06 in
Height
2.30 in
Dimensions
3.06 in x 3.06 in x 2.30 in

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Cover Type
No Cover
IP Rating
IP20
Standards
Certified for current interrupting at full rated current, UL
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Special Features
Molded In or Stamped On
Wiring Style
Standard
Flange Material
Natural White Nylon
Material
Nickel-plated Brass Round head screws
Application
Extra Heavy Duty Industrial
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding,Non-NEMA, Screw Terminal, White
