Shop HUBBELL WIRING DEVICE-KELLEMS

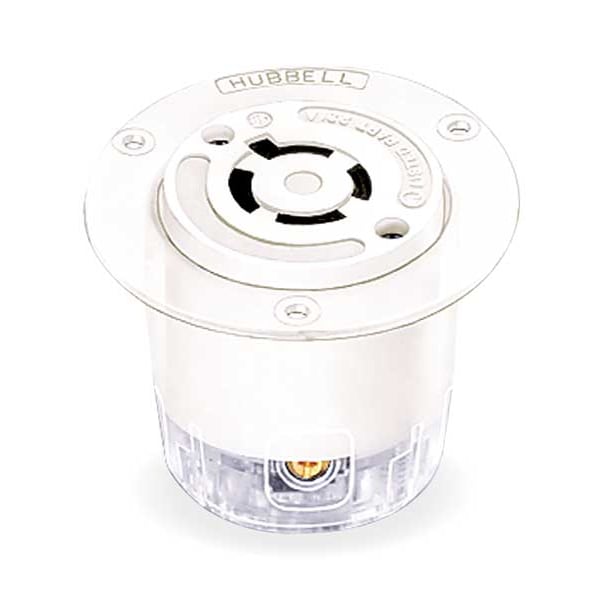

Flanged Locking Receptacle, L18-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2446

  • Zoro # G2360233

product price:
$
59.54
/ea

Key Features

NEMA Receptacle Configuration
L18-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2446
Zoro #
G2360233
UPC #
783585038384
Country of Origin
United States
Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L18-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Wiring Style
Standard
Mounting Type
Flush Mount
Grade
Industrial
IP Rating
IP20
Material
Thermoset
Special Features
With Cover
NEMA Enclosure Rating
12, 4X
Number of Gangs
1
Flange Shape
Round
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Shrouded
No
Connection Orientation
Straight
For Location
Indoor
For Environment
Dry
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Polarized
Yes
AFCI
No
Includes Mounting Hardware
Yes
Includes
Mounting Screws
Market
Industrial
Spring Material
Brass
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Flange Material
Natural White Nylon
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Application
Insulgrip
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Amps
20
UL 94 Flammability Rating
HB

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Round, Flange Type Flanged, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L18-20R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Grade Industrial
