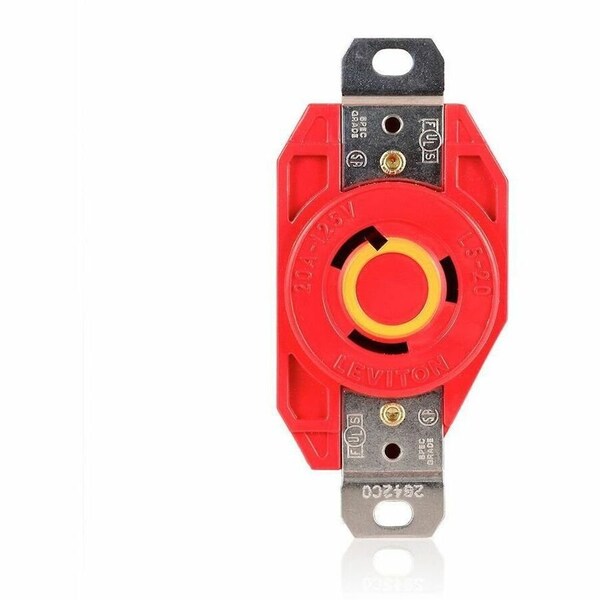

Leviton Locking Receptacle, 20 A, 125V AC, Red 2310-R - main
Shop LEVITON

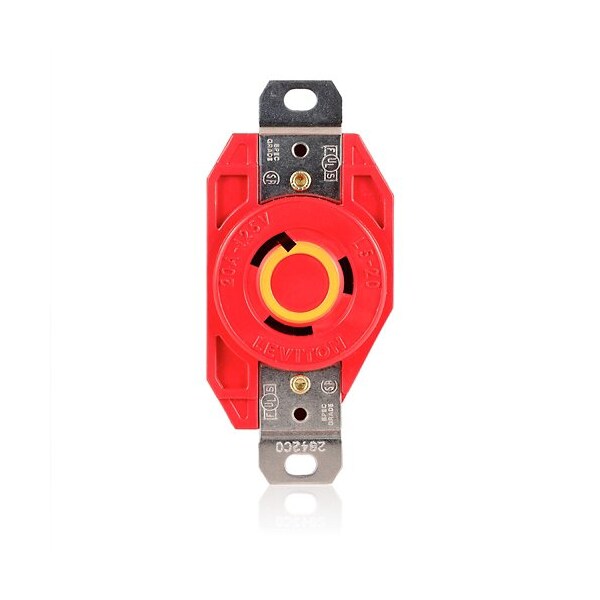

Locking Receptacle, 20 A, 125V AC, Red

  • Mfr # 2310-R

  • Zoro # G922587501

product price:  $40.29
/ea

Key Features

Number of Wires
3
Mount Hole Center-to-Center Height
3.75 in
Voltage Rating
125V AC
Face Plate Width
1.69 in
Housing Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2310-R
Zoro #
G922587501
UPC #
78477333150
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.75 in
Face Plate Width
1.69 in
Maximum Wire Size
8 AWG
Overall Depth
1.31 in
Face Plate Height
2.67 in
Face Diameter
1.56 in
Minimum Wire Size
14 AWG

Details

Number of Wires
3
Voltage Rating
125V AC
Housing Color
Red
IP Rating
Not Rated
Grounding
Grounded
Wire Connection Type
Screw Terminals
Number of Gangs
1
Series
Hubbell-PRO
Maximum Operating Temperature
60 Degrees C
Mount Type
Flush
Flange Type
Non-Flanged
Item
Locking Receptacle
Minimum Operating Temperature
-40 Degrees C
Hub Type
Dead End
Contact Material
Brass
Connection Orientation
Straight
Market
Industrial
NEMA Receptacle Configuration
L5-20R
Resistance Properties
Impact Resistant
Current Rating
20 A
Midget Locking
No
Cover Type
No Cover
Horsepower Rating
1 hp
Features
Single-Piece Contacts for Superior Conductivity, Triple Head Brass
For Environment
Industrial
UL 94 Flammability Rating
V-0
Number of Poles
2
Shrouded
Yes
Number of Outlets
2
Housing Material
Valox
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec W-C-596
NEMA Enclosure Rating
Not Rated
Phase
Single

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Red, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
