  11. Flanged Locking Receptacle, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, White

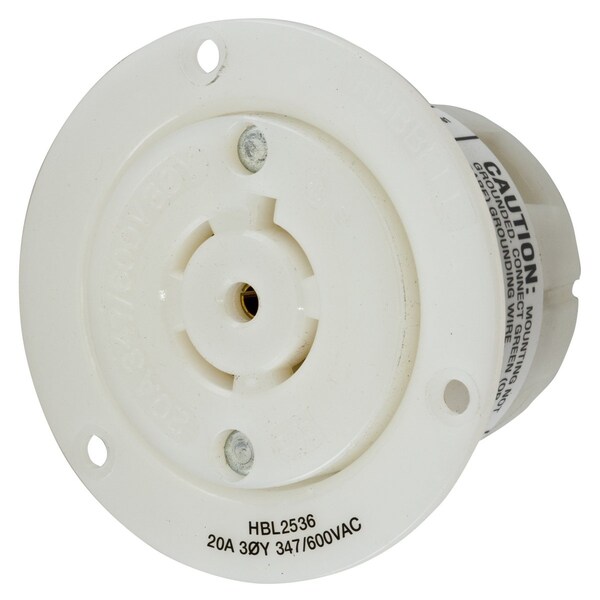

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, White HBL2536 - main

Flanged Locking Receptacle, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, White

  • Mfr # HBL2536

  • Zoro # G400702273

product price: $119.81
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2536
Zoro #
G400702273
UPC #
783585038704
Country of Origin
United States

Dimensions

Wire Size
#12 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Width
3.06 in
Height
2.27 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Cover Type
No Cover
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Material
Nickel-plated Brass Round head screws
Special Features
Molded In or Stamped On
Flange Material
Natural White Nylon
Wiring Style
Standard
Application
Heavy Duty Industrial
Spring Material
Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 3-Phase Wye 20A 347/600V AC, 4-Pole 5-WireGrounding, L23-20R, Screw Terminal, White
