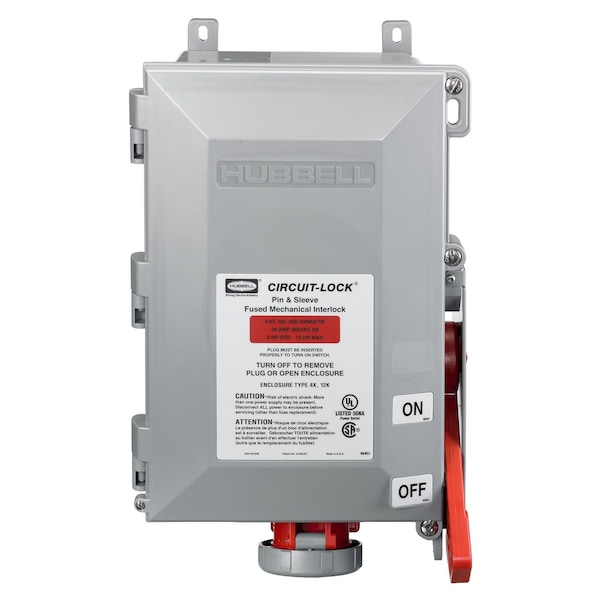

Fused Circuit-Lock Interlock Device, 4P5W, 30A 3PH 277/480V
- Mfr # HBL530MIF7W
- Zoro # G400701108
product price:Â
$
2,461.05
/ea
Free Shipping & Returns
Key Features
Phase
3Y
Number of Poles
4
Number of Wires
5
Voltage
277/480V
NEMA Rating
4X, 12
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HBL530MIF7W
- Zoro #
- G400701108
- UPC #
- 783585406114
- Country of Origin
- United States
Dimensions
- Wire Size
- 4 to 12 AWG
Details
- Phase
- 3Y
- Number of Poles
- 4
- Number of Wires
- 5
- Voltage
- 277/480V
- NEMA Rating
- 4X, 12
- Use With
- Mating Plug HBL530P7W
- Color - Plugs and Receptacles
- Red
- Type
- Fused, Watertight Receptacle
- Amps - Plugs and Receptacles
- 30 A
- HP
- 15
- Standards
- UL Listed, CSA Certified, UL746C
- Features
- IEC Mechanical Interlock, UV Stabilized
- Body Material - Pin and Sleeve
- Valox
- Operating Temp. Range
- -40° C to 75° C
- IP Rating
- IP67
Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Fused Mechanically InterlockedReceptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding,Terminal Screws, Red, Watertight
