  11. Illuminated Wall Switch, 3-Way, 15A, Wht

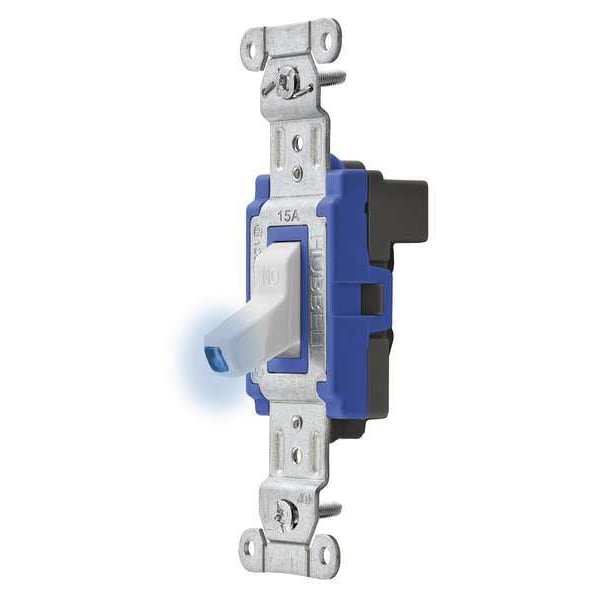

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 15A, Wht SNAP1203ILW - main

Illuminated Wall Switch, 3-Way, 15A, Wht

  • Mfr # SNAP1203ILW

  • Zoro # G4616543

product price: $25.89
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1203ILW
Zoro #
G4616543
UPC #
783585186153
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Length
4.18 in
Height
1.74 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Rated HP
1/2 to 2
Antimicrobial
No
Description/Special Features
Light On with Load Off
Maximum Operating Temperature
167 Degrees F
Illumination Type
Illuminated
Housing Material
Thermoplastic
For Market
Industrial Grade
Resistance Properties
Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Illuminated
Yes
Number of Switches
1
Wire Connection Type
Modular Wiring
Current Rating
15 A
Voltage Rating
120/277V AC
Wire Connection Types
Snap-In Module
Market
Industrial
Horsepower Rating
2 hp
Type
Toggle
Style
Three Way
Toggle Color
White
Top Material
Thermoplastic, Blue
Terminals
Brass
Terminal Accommodations
Uses SNAPConnect Connector
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
15A
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Base Material
Thermoplastic, Black
Contacts
Silver Alloy
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Material
Thermoplastic
Overload
Minimum 4.8 times rated current for 100 cycles
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Industry Standard(s)
UL Listed
Indicator(s) Type
Blue LED
Material
Thermoplastic
Number Of Poles
Single Pole
Series
Illuminated
Indicator
Light On with Load Off
Action
SPDT
Item Type
Three Way Illuminated Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
15 A
Current / Amperage Rating
15 A

Description

Illuminated Wall Switch, Color White, Current Rating 15 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
