  11. Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired Toggle

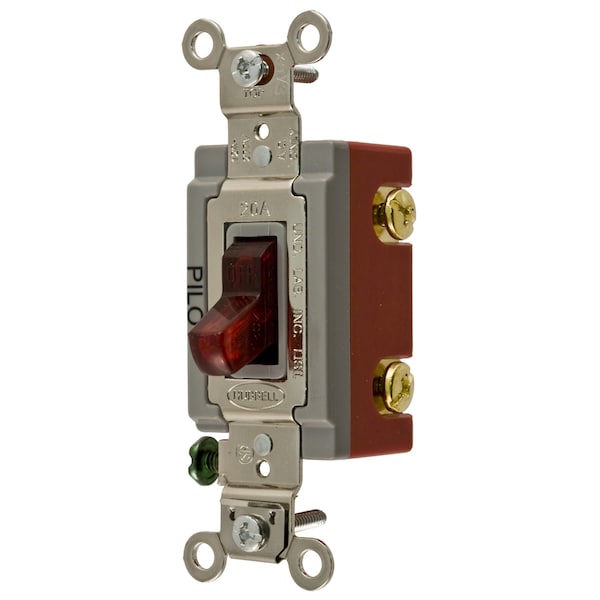

Hubbell Wiring Device-Kellems Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired Toggle HBL1222PL - main

Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired Toggle

  • Mfr # HBL1222PL

  • Zoro # G000701065

product price: $70.19
/ea

Key Features

Switch Type
Pilot Double Pole
Color
Red
Height
1.86 in
Type
Toggle
Style
Double Pole
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1222PL
Zoro #
G000701065
UPC #
783585431680
Country of Origin
China

Dimensions

Height
1.86 in
Length
4.06 in
Width
1.31 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.86 in

Details

Switch Type
Pilot Double Pole
Color
Red
Type
Toggle
Style
Double Pole
Voltage
120/277V AC
Application
Back and Side Wired
Voltage Rating
120-277 VAC
Carton Quantity
10
Max. Continuous Current
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Double Pole
Connectivity
Back and Side Wired
Temperature Rise
30°C maximum at rated current
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Current / Amperage Rating
20 A
Wiring Style
Back and Side Wired
Industry Standard(s)
UL Listed
Nylon Wall Plate
NP1R
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Amperage Rating
20 A
Flammability
UL 94V-2
Temperature Rise - Max.
30°C maximum at rated current
Max. Working Voltage
277V AC
Amperage
20 A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Voltage Rating Description
120-277 VAC
Switch Grade
Industrial
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Series
Extra Heavy Duty
Temp. Rise
30°C maximum at rated current
Toggle Color
Red
Current Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Switch Handle Positions
2
Indicator
Light On with Load On

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, PilotLight Industrial Grade, Toggle Switches, General Purpose AC, DoublePole, 20A 120/277V AC, Back and Side Wired, Red
