Shop HUBBELL WIRING DEVICE-KELLEMS

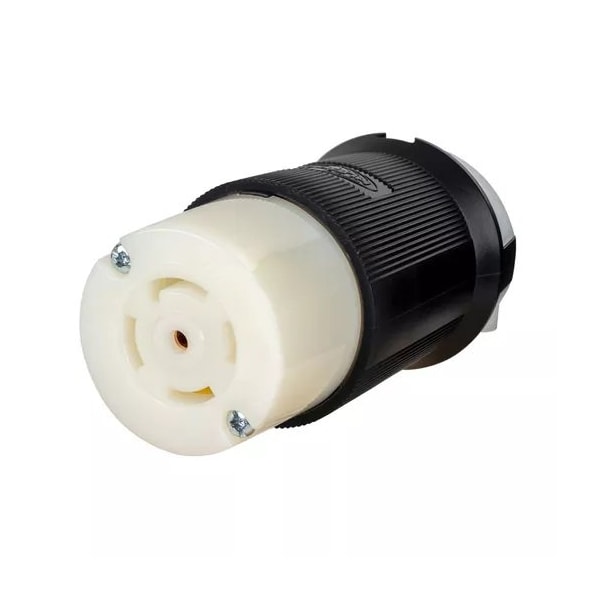

Locking Connector, L22-30R, 30 A, 480V AC, Three Phase, 4 Pole, Spring Clamp Terminals

  • Mfr # HBL2823ST

  • Zoro # G606170845

product price:  $101.39
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2823ST
Zoro #
G606170845
UPC #
783585719139
Country of Origin
China

Dimensions

For Maximum Cable Diameter
1.15 in
Outside Diameter
2.33 in
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
2.33 in
Wire Rope Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Federal Specification
IP Rating
IP20
UL 94 Flammability Rating
HB
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Market
Industrial
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
For Location
Indoor

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Superior cord grip design protects terminations from excess strain
