  11. Locking Connector, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

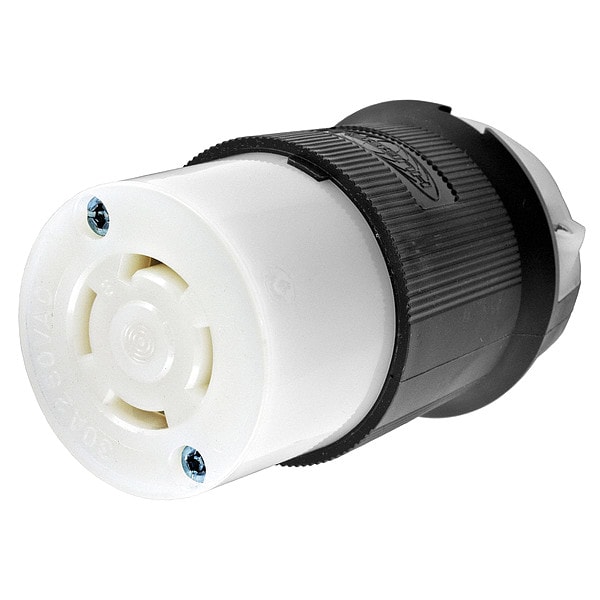

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL3433GCB - main

Locking Connector, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL3433GCB

  • Zoro # G1727537

product price: $133.18
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3433GCB
Zoro #
G1727537
UPC #
783585039909
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
For Maximum Cable Diameter
1.15 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Minimum Wire Size
16 AWG
For Minimum Cable Diameter
0.35 in
Overall Length
2.33 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Wire Size
#16 AWG to #8 AWG
Height
3.86 in
Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Listed, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Market
Industrial
For Location
Indoor
Midget Locking
No
Housing Material
Nylon
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.4
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
30 A
Cord Range
0.350"-1.150" (9-29)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 30A Twist-Lock Connector is a locking connector rated for use in specified electrical applications and environments. It features a ribbed nylon housing provides grip; material is rated for impact and chemical resistance per manufacturer specifications for enhanced durability. The connector accommodates cables ranging from 0.350" to 1.150" in diameter and supports wire sizes from #16 AWG to #8 AWG stranded copper wire.


Key Features of the HUBBELL 30A Twist-Lock Connector:

  • Amperage/Voltage Rating: Rated for 30 A at 250V AC, three-phase, four-wire configuration

  • Body Material: Constructed from natural white nylon with chemical and impact resistance

  • Cord Range: Accepts cable diameters between 0.350" and 1.150"

  • Contact Material: Brass contacts are used as the contact material

  • Wire Connection Type: Screw terminals accommodate #16 AWG to #8 AWG stranded copper wire

  • Dielectric Strength: Withstands a minimum of 2,000V dielectric voltage

  • Flame Resistance: Meets HB or better per UL94 or CSA standards

  • Cord Grip Design: Cord grip is designed to reduce strain on terminations; funnel-shaped entry assists with wire insertion during installation

  • Dust Protection: Dust shield included over wiring chamber helps protect wiring chamber from contaminants

  • Temperature Rating: Operates continuously up to 75°C; minimum -40°C without impact

  • Standards Compliance: Certified under UL/CSA requirements; terminals identified per UL498 (X, Y, Z, White, Green)
