  11. Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

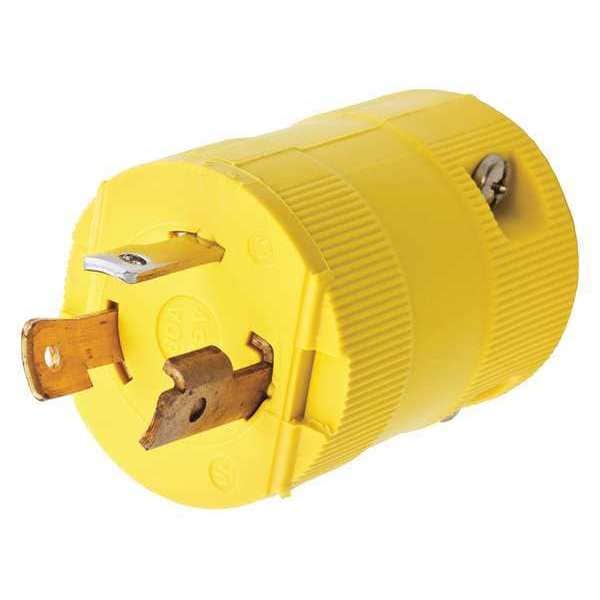

Hubbell Wiring Device-Kellems Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL2611VY - main

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL2611VY

  • Zoro # G4572191

product price: $22.99
/ea

Key Features

NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2611VY
Zoro #
G4572191
UPC #
783585235967
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.59 in
Cord Size
0.590 in to 0.930 in
Body Length
1.78 in
Minimum Wire Size
14 AWG
Face Diameter
1.781 in
Maximum Wire Size
8 AWG
Wire Size
#14 AWG to #8 AWG
Length
1.78 in
Dimensions
1.78 in x 1.78 in x 2.5 in
Width
1.78 in
Height
2.5 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
For Location
Indoor
Polarized
Yes
For Environment
Dry
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.590"-0.930" (15.0-23.6)
Antimicrobial
No
Amps
30

Description

The HUBBELL 30A Locking Plug L5-30P YL is a locking plug rated for use in demanding environments where a secure electrical connection is required. It features a nylon housing with specified impact and crush resistance, with a cord grip designed to help minimize conductor movement and strain on wiring terminals. The plug utilizes clamp-type screw terminals are intended to bundle conductor strands during installation.


Key Features of the HUBBELL 30A Locking Plug L5-30P YL:

  • Amperage/Voltage Rating: Rated for 30 A at 125V AC, suitable for demanding industrial use.

  • Cord Range: Accepts cable diameters from 0.590 in to 0.930 in (#14 AWG to #8 AWG wire size).

  • Material: Nylon body provides specified chemical resistance and impact tolerance; brass blades used as current-carrying components.

  • Wire Connection Type: Screw terminals with hinged wiring style; clamp design intended to facilitate strand bundling during installation.

  • Operating Temperature: Rated for operation at temperatures up to 75°C and down to -40°C (without impact).

  • Standards Compliance: Meets UL 498, CSA C22.2 No.42, Federal Specification W-C-596 requirements.

  • Ingress Protection: IP20 rating; intended for indoor dry locations unless additional protection is provided.
