  11. Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Surface Mount, Gray

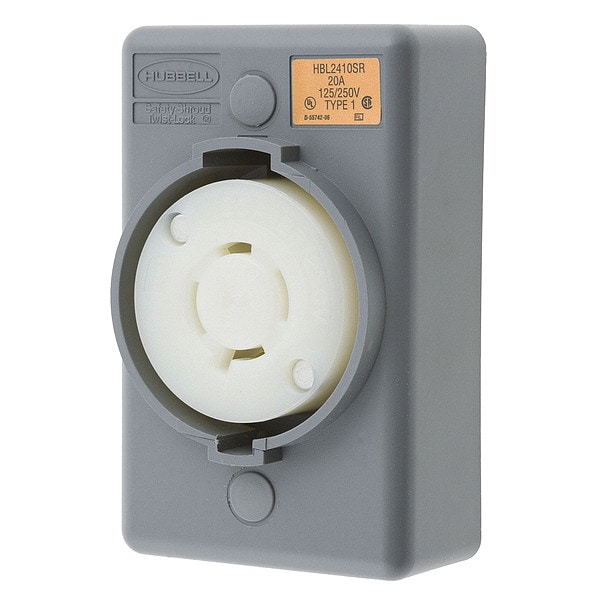

Hubbell Wiring Device-Kellems Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Surface Mount, Gray HBL2410SR - main

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Surface Mount, Gray

  • Mfr # HBL2410SR

  • Zoro # G3030806

product price: $51.95
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2410SR
Zoro #
G3030806
UPC #
783585234427
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Flanged
Wiring Style
Standard
Material
Nylon
Mounting Type
Surface Mount
Special Features
Corrosion resistant
Grade
Industrial
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Number of Gangs
1
Housing Material
Valox
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
AFCI
No
Horsepower Rating
2 hp
Polarized
Yes
Market
Industrial
For Environment
Dry
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flange Material
Gray Valox 357U
Spring Material
.031" Brass
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Amps
20

Description

The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is a locking receptacle intended for use in industrial settings, rated for single-phase operation at 125/250V AC, 20 amps. It features a twist-lock mechanism.


Key Features of the HUBBELL 20A Twist-Lock Receptacle L14-20R:

  • NEMA Configuration: L14-20R, 3-pole, 4-wire grounded design

  • Current/Voltage Rating: Rated for 20 A at 125/250V AC

  • Material Construction: Engineered thermoplastic housing (Valox), nylon components; made with materials described as corrosion- and impact-resistant by the manufacturer

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)

  • Wire Compatibility: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals

  • Mounting Type: Surface mount; non-flanged design

  • Contact/Spring Material: Brass contacts and .031" brass spring material

  • Flammability Rating: UL94 V2 or better per UL94/CSA standards

  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor use only

  • Terminal Identification: Terminals marked according to UL498 (X, Y, Z, White, Green)

  • Coding & Polarization: Color-coded voltage rating remains visible during operation; polarized configuration
