Shop HUBBELL WIRING DEVICE-KELLEMS

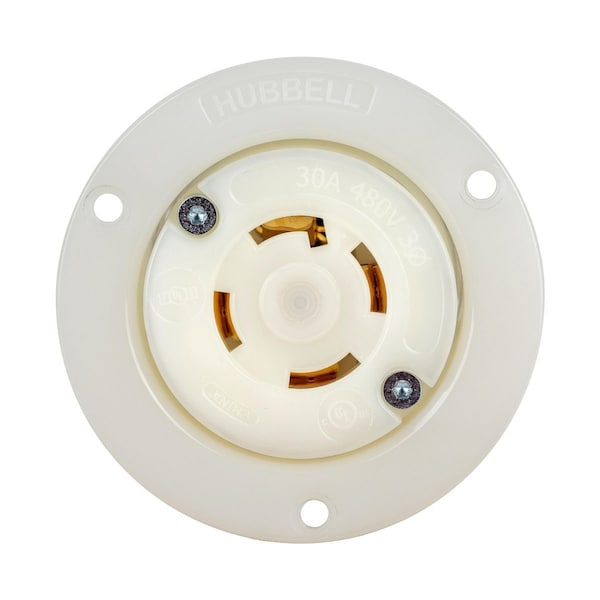

Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL2736ST

  • Zoro # G906171337

product price:
$
73.45
/ea

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2736ST
Zoro #
G906171337
UPC #
783585719191
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.28 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Depth
2.27 in
Flange Diameter
2.23 in
Face Plate Width
1.7 in
Face Plate Height
2.77 in
Face Diameter
3.06 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Wiring Style
Standard
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
For Environment
Dry
Horsepower Rating
10 hp
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
For Location
Indoor
AFCI
No
Includes Mounting Hardware
Yes
Polarized
Yes
Shrouded
No
Housing Material
Nylon
Number of Gangs
1
Market
Industrial
Includes
Mounting Hardware

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
