  11. Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

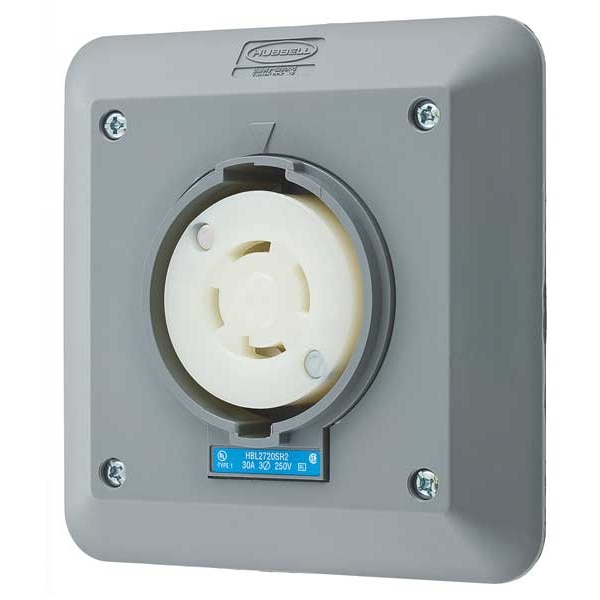

Hubbell Wiring Device-Kellems Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray HBL2720SR2 - main

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # HBL2720SR2

  • Zoro # G0608693

product price: $83.45
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2720SR2
Zoro #
G0608693
UPC #
783585234762
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#10 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Flanged
Material
Impact Modified PBT
Mounting Type
Semi Flush Mount
Wiring Style
Standard
Grade
Industrial
Special Features
Corrosion resistant
For Location
Indoor
Contact Material
Brass
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
Valox
Market
Industrial
Connection Orientation
Straight
Horsepower Rating
3 hp
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
AFCI
No
Number of Gangs
2
Lock Type
Twist-lock
Spring Material
.031" Brass
Flange Material
Gray Valox 357U
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Amps
30

Description

The HUBBELL 30A Locking Receptacle L15-30R is a three-pole, four-wire device rated for 250V AC and suitable for industrial applications. This twist-lock receptacle features alignment arrows with lock and unlock symbols to visually indicate proper connection, as well as visible catalog number and voltage rating even when in use. The housing is constructed from impact-modified PBT and Valox materials, providing resistance to corrosion and physical impacts.


Key Features of the HUBBELL 30A Locking Receptacle L15-30R:

  • NEMA Configuration: L15-30R; three-pole, four-wire design

  • Current/Voltage Rating: Rated for 30 A at 250V AC

  • Housing Material: Valox housing with gray finish

  • Mount Type: Flush mount; semi flush mounting style

  • Wire Connection Type: Screw terminals accept wire sizes from 8 AWG to 16 AWG (#10 AWG standard)

  • Operating Temperature Range: -40°F to 167°F (maximum continuous operation at up to 75°C)

  • Resistance Properties: Construction rated as corrosion resistant and impact resistant; intended for dry indoor locations

  • Lock Type: Twist-lock mechanism with visual alignment indicators

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed
