  11. Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

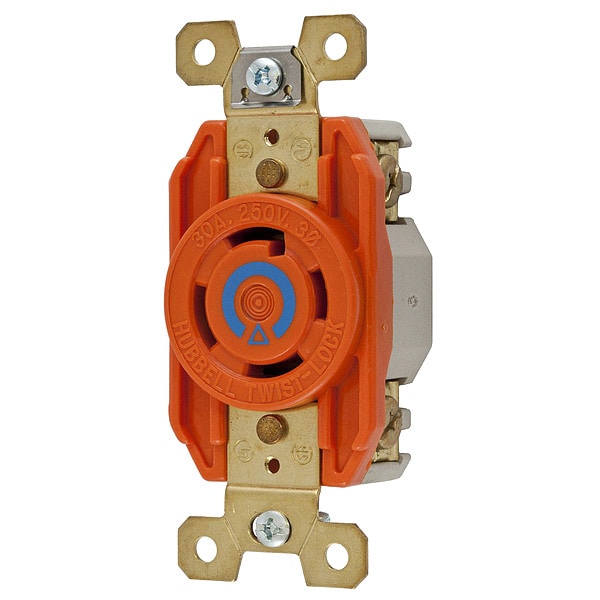

Hubbell Wiring Device-Kellems Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals IG2720 - main

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # IG2720

  • Zoro # G2961646

product price: $81.79
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG2720
Zoro #
G2961646
UPC #
783585872445
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire.
Height
1.23 in
Dimensions
3.28 in x 1.7 in x 1.23 in
Length
3.28 in
Width
1.7 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Grade
Industrial
Special Features
With Isolated Ground
Mounting Type
Flush Mount
Wiring Style
Standard
Material
Nylon
AFCI
No
Includes Mounting Hardware
Yes
Contact Material
Brass
Housing Material
Nylon
Includes
Mounting Hardware
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
3 hp
Market
Industrial
Connection Orientation
Straight
For Location
Indoor
Number of Gangs
1
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Spring Material
.040" Brass
Lock Type
Twist-lock
Base Material
Nylon Polyester
Amperage Rating
30 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
30

Description

The HUBBELL 30A Isolated Ground Locking Receptacle is an industrial-grade device intended for use in commercial and industrial settings. Featuring an isolated ground, this receptacle provides an isolated ground to separate the ground contacts from the mounting strap. It accommodates three poles and four wires, operates at 240V AC (rated up to 250V AC), and uses a twist-lock mechanism with NEMA L15-30R configuration for reliable connection integrity.


Key Features of the HUBBELL 30A Isolated Ground Locking Receptacle:

  • Amperage/Voltage: Rated for 30 A and up to 250V AC operation

  • NEMA Configuration: L15-30R; three-pole, four-wire design

  • Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap

  • Material Construction: nylon housing with brass contacts

  • Mounting Type: Flush mount with included screw hardware

  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals

  • Operating Temperature Range: -40°C minimum (without impact) to maximum continuous 75°C; withstands temperature rise up to 30°C at full rated current after overload cycles

  • Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V dielectric voltage; UL94 V-2 flammability rating or better

  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor dry locations unless otherwise protected

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards
