  11. Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

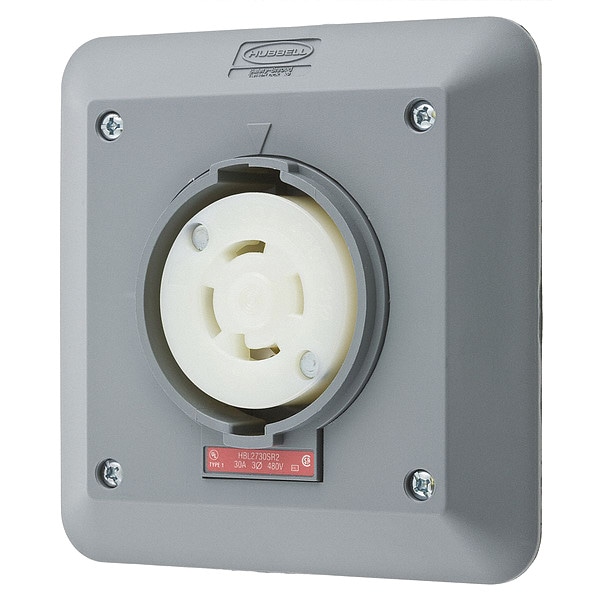

Hubbell Wiring Device-Kellems Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray HBL2730SR2 - main

Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # HBL2730SR2

  • Zoro # G1853984

product price: $83.85
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2730SR2
Zoro #
G1853984
UPC #
783585234847
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Flanged
Material
Impact Modified PBT
Grade
Industrial
Mounting Type
Semi Flush Mount
Special Features
Corrosion resistant
Wiring Style
Standard
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Contact Material
Brass
Housing Material
Valox
Maximum Operating Temperature
85 Degrees C
AFCI
No
Horsepower Rating
10 hp
Connection Orientation
Straight
Polarized
Yes
Market
Industrial
Number of Gangs
2
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Flange Material
Gray Valox 357U
Spring Material
.031" Brass
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Amps
30

Description

• Accepts Hubbell shrouded and standard NEMA locking plugs
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
