Shop HUBBELL WIRING DEVICE-KELLEMS

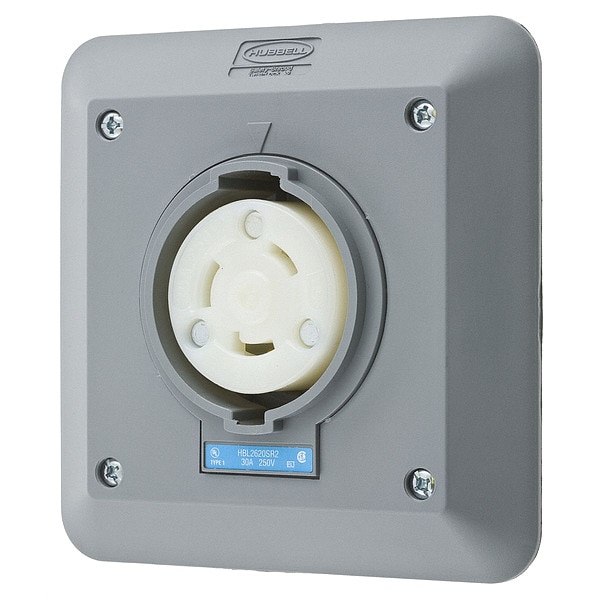

Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2620SR2

  • Zoro # G0673522

product price:  $57.59
/ea

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2620SR2
Zoro #
G0673522
UPC #
783585234366
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray, White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Mounting Type
Semi Flush Mount
Material
Impact Modified PBT
Wiring Style
Standard
IP Rating
IP20
Special Features
Corrosion resistant
Grade
Industrial
Polarized
Yes
Housing Material
Valox
For Environment
Dry
For Location
Indoor
Market
Industrial
Connection Orientation
Straight
Number of Gangs
2
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Horsepower Rating
2 hp
AFCI
No
Shrouded
Yes
NEMA Enclosure Rating
12, 4X
Maximum Operating Temperature
167 Degrees F
Lock Type
twist-lock
Spring Material
.031" Brass
Flammability
VO or better
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
30
UL 94 Flammability Rating
V-2

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
