  11. Locking Receptacle, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

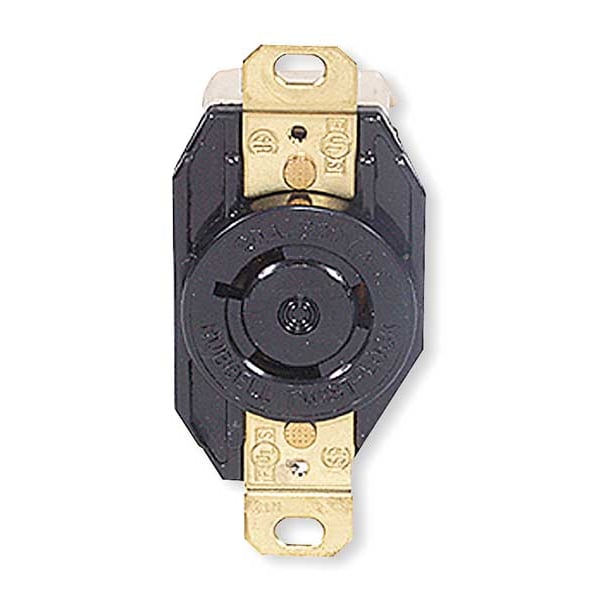

Hubbell Wiring Device-Kellems Locking Receptacle, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL2350 - main

Locking Receptacle, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2350

  • Zoro # G2358474

product price: $44.59
/ea

Key Features

NEMA Receptacle Configuration
L9-20R
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2350
Zoro #
G2358474
UPC #
783585235721
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 to #8 AWG Copper Only
Dimensions
3.28 in x 1.7 in x 1.23 in
Height
1.23 in
Length
3.28 in
Width
1.7 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L9-20R
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Material
Thermoplastic Polyester
Special Features
Corrosion resistant
Mounting Type
Flush Mount
Grade
Industrial
Wiring Style
Standard
Polarized
Yes
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
AFCI
No
Housing Material
Nylon
Horsepower Rating
5 hp
Number of Gangs
1
For Environment
Dry
Includes
Mounting Screws
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Contact Material
Brass
Spring Material
.040" Brass
Base Material
Nylon Polyester
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Amps
20

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L9-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Flange Diameter Not Applicable
