  11. Locking Receptacle, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

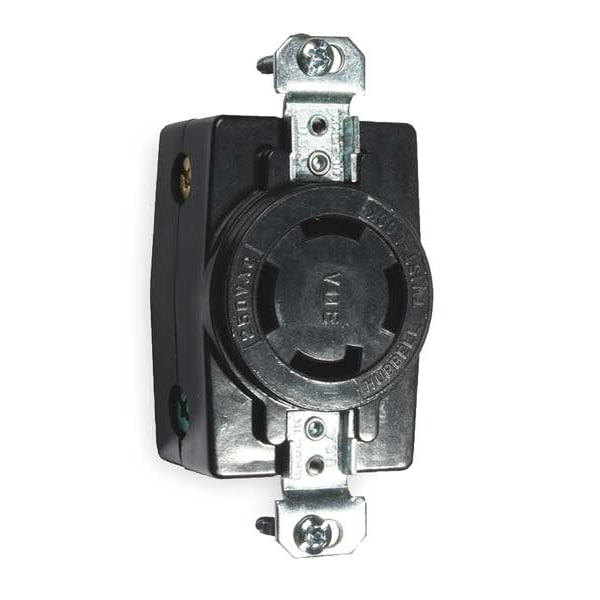

Hubbell Wiring Device-Kellems Locking Receptacle, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals HBL3430G - main

Locking Receptacle, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL3430G

  • Zoro # G1879245

product price: $89.85
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3430G
Zoro #
G1879245
UPC #
783585333250
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG
Height
1.36 in
Length
3.61 in
Dimensions
3.61 in x 1.71 in x 1.36 in
Width
1.71 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Flange Type
Non-Flanged
Special Features
Corrosion resistant
Material
Impact Modified PBT
Grade
Industrial
Wiring Style
Standard
Mounting Type
Flush Mount
For Location
Indoor
Connection Orientation
Straight
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Polarized
Yes
Market
Industrial
Includes
Mounting Hardware
For Environment
Dry
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
AFCI
No
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Spring Material
.040" Brass
Base Material
Nylon Polyester
Lock Type
Replacement-use
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
30 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
30

Description

The HUBBELL 30A Twist-Lock Receptacle is a locking receptacle rated for use in industrial environments. It features a three-pole, four-wire configuration and is rated for 250V AC and 30 amps. The device has a nylon face and housing, with color coding to assist in matching voltage requirements during installation.


Key Features of the HUBBELL 30A Twist-Lock Receptacle:

  • Amperage/Voltage Rating: Rated for 30 A at 250V AC, suitable for heavy-duty industrial use.

  • Configuration: Three poles, four wires; includes grounding and polarization features.

  • Material Construction: Nylon face and housing; brass contacts and mounting system provide corrosion resistance.

  • Wiring Options: Supports both back and side wiring with screw terminals; accommodates #16 AWG to #8 AWG solid or stranded copper wire only.

  • Mounting Type: Flush mount design with included screw mounting hardware; non-flanged style.

  • Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.

  • Coding & Identification: Face color coded by voltage; terminal identifications per UL 498 standards.

  • Certifications & Ratings: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL 498; IP20 suitability for indoor dry locations unless otherwise protected.
