  11. Locking Receptacle, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

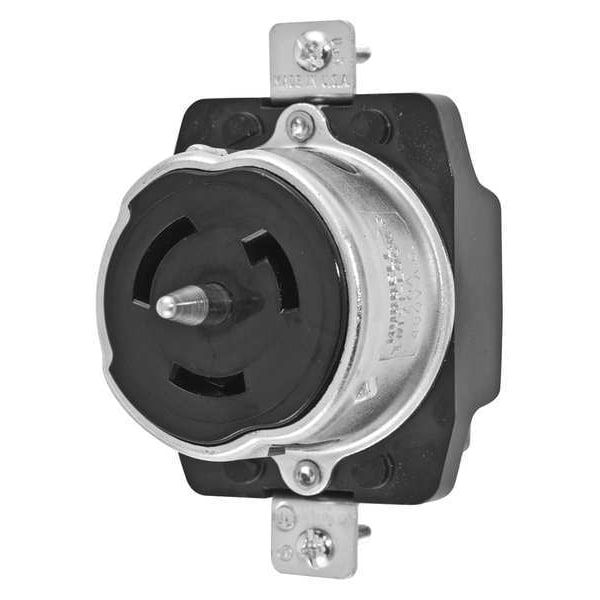

Hubbell Wiring Device-Kellems Locking Receptacle, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals CS8469 - main

Locking Receptacle, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # CS8469

  • Zoro # G1150195

product price: $119.81
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS8469
Zoro #
G1150195
UPC #
783585876757
Country of Origin
United States

Dimensions

Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Wire Size
#10 AWG - #6 AWG solid or stranded copper wire only
Dimensions
2.69 in x 2.12 in x 2.36 in
Height
2.36 in
Length
2.69 in
Width
2.12 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP30
NEMA Enclosure Rating
4, 4X, 12
Standards
CSA Certified C22.2 No.42, UL 498
Resistance Properties
Heat Resistant
Flange Type
Non-Flanged
Grade
Industrial
Special Features
With Locking Cover
Mounting Type
Flush Mount
Material
Impact Modified PBT
Wiring Style
Standard
Number of Gangs
1
Contact Material
Brass
Housing Material
Phenolic
AFCI
No
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Market
Industrial
Connection Orientation
Straight
For Location
Indoor
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Spring Material
.100"/.040" Brass
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Base Material
Black Thermoset
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
50 A
Amps
50
NEMA Rating
4, 4X, 12

Description

The HUBBELL 50A Twist-Lock Receptacle is an industrial locking receptacle intended for electrical connections in various environments. It includes a twist-lock mechanism to prevent accidental disconnection and is rated for 50 amps at 480V AC, single phase. The device accommodates #10 AWG to #6 AWG solid or stranded copper wire and mounts flush for streamlined installation.


Key Features of the HUBBELL 50A Twist-Lock Receptacle:

  • Amperage/Voltage: Rated for 50 A, 480V AC single phase applications

  • Poles/Wires: 2-pole, 3-wire configuration with grounding

  • Construction: Black thermoset base with impact-modified PBT housing; shrouded design enhances durability

  • Contact Material: brass contacts

  • NEMA/Enclosure Rating: Non-NEMA configuration; NEMA enclosure ratings of 4, 4X, and 12 suitable for indoor dry locations unless protected by additional means

  • Mounting Type: Flush mount with screw mounting hardware included

  • Cable Accommodation: Accepts #10–#6 AWG solid or stranded copper wire via screw terminals

  • Temperature Range: Operates from -40°C to +75°C (maximum continuous), maximum operating temperature of up to 167°F (75°C)

  • Flammability & Standards: UL94 V-0 flammability rating; certified to CSA C22.2 No.42 and listed to UL498 standards
