Shop HUBBELL WIRING DEVICE-KELLEMS

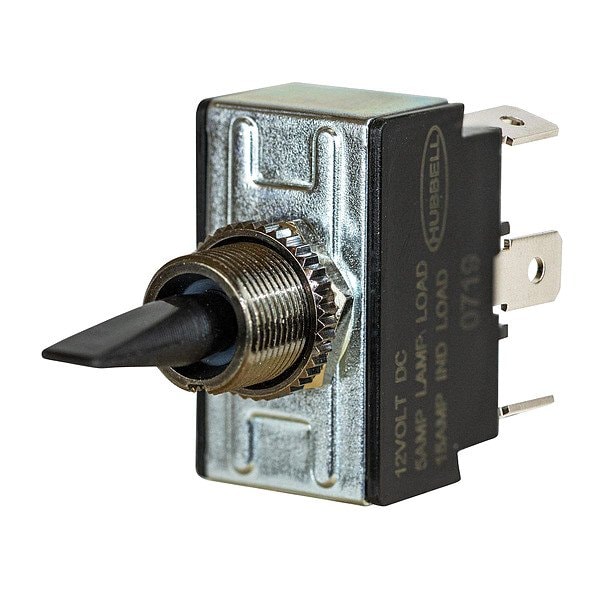

MarineToggleSwitch, MomOn/Off/MomOn, SPDT

  • Mfr # M123MMSP

  • Zoro # G1604915

product price:
$
15.19
/ea

Key Features

Switch Function
Momentary On/Off/Momentary On
Contact Form
SPDT
Actuator Style
Flattened Lever
Amps
15A @ 12VDC
Number of Connections
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M123MMSP
Zoro #
G1604915
UPC #
783585904559
Country of Origin
China

Dimensions

Stem Length
0.37 in
Actuator Length
0.8 in
Stem Dia. and Thread Size
0.47"-32 UNC-2A, 0.480 in dia
Mounting Hole Diameter
0.48 in
Stem Diameter
0.48 in
Overall Width
1.37 in
Overall Depth
2.35 in
Manufacturer Warranty Length
1 yr
Stem Thread Size
15/32-32 UNC-2A
Overall Height
0.75 in

Details

Switch Function
Momentary On/Off/Momentary On
Contact Form
SPDT
Actuator Style
Flattened Lever
Amps
15A @ 12VDC
Number of Connections
3
Terminals
1/4 in Solder Lug/Quick Connect Tab
DC Contact Rating
15 A @ 12 V
Actuator Color
Black
Item
Marine Toggle Switch
Recommended Use
Trim Tabs
Operating Temp. Range
-10 Degrees to 105 Degrees F
Stem Color
Black
Mounting Hole
0.50 in dia
IP Rating
Not Rated
Includes
Lock Nuts
Carton Quantity
10
Product Type
Marine Toggle Switch
Series
MARINE
Color
black
DC Product Type
Panel Mount Toggle Switch
Typical Applications
Trim Tabs
Description
Single Pole, Double Throw Momentary On/Off Momentary On
Enhancement
Standard
Number of Positions
3
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
105 Degrees F
Resistance Properties
Corrosion Resistant
Terminal Connection Type
Spade Terminals
Number of Poles
1
Features
Black
Switch Function Configuration
Momentary On/Off/Momentary On
NEMA Enclosure Rating
No Enclosure
Base Type
Flat
Operator Illumination Style
Non-Illuminated

Description

Marine Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function Momentary On/Off/Momentary On, AC Contact Rating Not Applicable, Terminals 1/4 in Solder Lug/Quick Connect Tab, Mounting Hole 0.50 in dia, DC Contact Rating 15 A @ 12 V, Actuator Style Flattened Lever, Actuator Length 0.8 in, Stem Length 0.37 in, Stem Dia. and Thread Size 0.47 In.-32 UNC-2A, 0.480 in dia, Operating Temp. Range -10 Degrees to 105 Degrees F, Actuator Color Black, Stem Color Black, Includes Lock Nuts
