  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

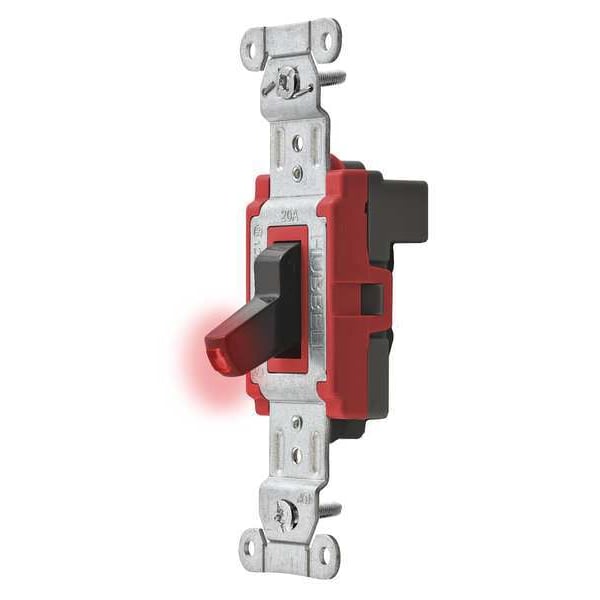

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A SNAP1221PLBK - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

  • Mfr # SNAP1221PLBK

  • Zoro # G4575855

product price: $22.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221PLBK
Zoro #
G4575855
UPC #
783585189994
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Height
1.74 in
Width
1.3 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load On
Antimicrobial
No
Rated HP
1 to 2
Standards
UL Listed
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Number of Switches
1
Current Rating
20 A
Resistance Properties
Impact Resistant
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Pilot Light
Yes
Voltage Rating
120/277V AC
Horsepower Rating
2 hp
Wire Connection Type
Modular Wiring
Type
Toggle
Style
Single Pole
Temperature Rise
30°C maximum at rated current
Base Material
Thermoplastic, Black
Contacts
Silver Alloy
Terminal Accommodations
Uses SNAPConnect Connector
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Flammability
UL 94V-2
Toggle Material
Thermoplastic
Terminals
Brass
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
Black
Top Material
Thermoplastic, Red
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Amperage Rating
20 A
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Voltage Rating Description
120-277 VAC
Material
Thermoplastic
Series
Pilot Light
Number Of Poles
Single Pole
Indicator(s) Type
Red LED
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Pilot Toggle Switch
Industry Standard(s)
UL Listed
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator
Light On with Load On

Description

Pilot Light Wall Switch, Color Black, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
