  9. Receptacle, Brwn, Male, Double Set Screw

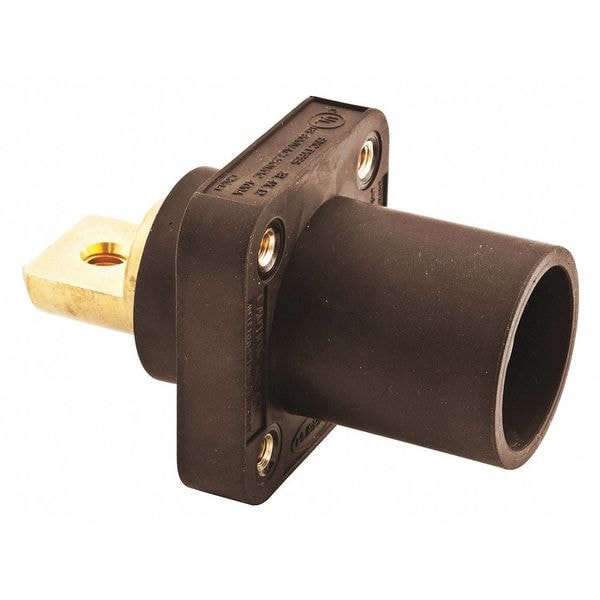

Hubbell Wiring Device-Kellems Receptacle, Brwn, Male, Double Set Screw HBLMRBBN - main

Receptacle, Brwn, Male, Double Set Screw

  • Mfr # HBLMRBBN

  • Zoro # G6151564

product price: $51.15
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRBBN
Zoro #
G6151564
UPC #
783585192604
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Length
3.61 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Width
2.2 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Conductor Material
Brass
Mounting
Threaded Hole
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Fits
UL1691
Cable Range
4 to 4/0
Single Pole Device Style
Taper Nose
Color
Brown
Amps AC/DC
300/400AC/DC
Amps AC
400 A
Terminal Connection Type
Bus Bar
Compatible with Series
16
Includes Mounting Hardware
Yes
Gender
Male
Housing Material
Thermoplastic Elastomer
Phase
Single
Flange Shape
Square
Mounting Style
Threaded Mounting
For Location
Indoor
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
End Type
Taper Nose
Connection Orientation
Straight
Housing Color
Brown
Number Of Poles
1-Pole
Material - Mounting Hardware
Screw Mounting
Style
Bus Bar Mount Male
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating
400 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Connectivity
Screw Terminals
Voltage Rating Description
600V AC/DC
Current / Amperage Rating
400 A
Wattage
240000
Application
High Ampacity Connections
Item Type
Flanged Single

Description

The HUBBELL Receptacle, Brown, Male, Double Set Screw is a single pole device rated for high ampacity electrical connections. This male bus receptacle features a flanged, taper nose style and is compatible with Series 16 devices. It accommodates wire sizes from #4 AWG to 4/0 AWG and utilizes double set screw terminals.


Key Features of the HUBBELL Receptacle, Brown, Male, Double Set Screw:

  • Amperage Rating: Rated up to 400 A (300/400A AC/DC)

  • Voltage Rating: Rated for operation at 600V AC or 250V DC

  • Cable Range: Accepts #4 AWG to 4/0 AWG conductors

  • Terminal Connection Type: Double set screw terminals

  • Mounting Style: Threaded mounting with included hardware; fits UL1691 requirements

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards

  • Standards Compliance: ANSI/NFPA 70 (NEC), cUL Listed, UL Listed

  • Material Construction: Thermoplastic elastomer housing with brass contacts/conductors
