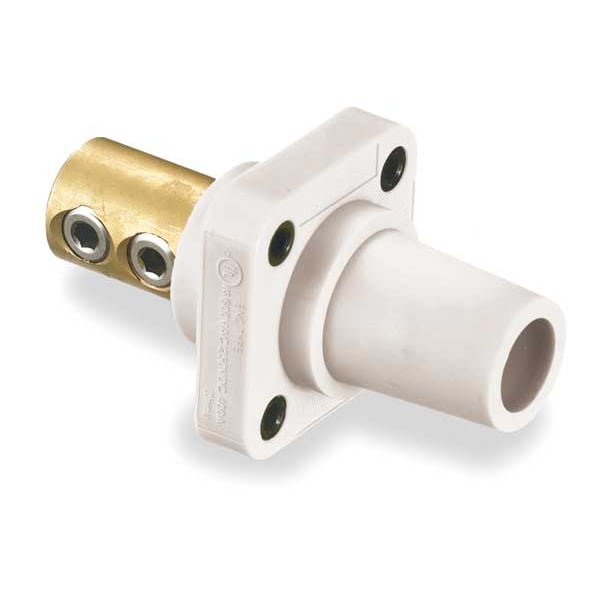

Receptacle, Double Set Screw, White

The HUBBELL Receptacle, Double Set Screw, White is a single pole panel mount receptacle rated for use in applications requiring up to 400 amps. This female device includes a double set screw terminal connection and can be used with Series 16 components as specified by the manufacturer. It accommodates wire sizes from #4 AWG to 4/0 AWG and is rated for operation at up to 400 amps and within voltage ranges of 600V AC or 250V DC. The housing material: thermoplastic elastomer; intended for indoor dry locations, unless otherwise protected according to installation requirements.

Key Features of the HUBBELL Receptacle, Double Set Screw, White:

• Amperage Rating: Rated for up to 400 A (AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Cable Range: Accepts #4 AWG to #4/0 AWG conductors


• Terminal Connection Type: Includes a double set screw terminal connection


• Contact Material: Brass contacts used as contact material


• Mounting Style: Panel mount with through hole mounting hardware


• NEMA Enclosure Ratings: Suitable for NEMA Types 12K, 3R, and 4X enclosures when properly installed


• Industry Standards: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements


• Housing Material: Thermoplastic elastomer construction; white color finish
