Receptacle, Female, Blk, 600VAC/250VDC

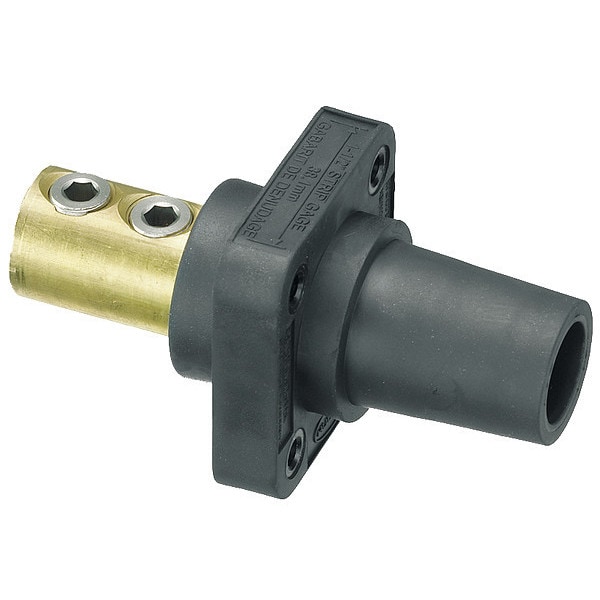

The HUBBELL Series 16 Female Receptacle is a single pole, panel mount device intended for use in applications requiring high current capacity. Rated for up to 400A and supporting voltages of 600V AC or 250V DC, this receptacle features a straight connection orientation and is suitable for indoor dry locations; suitability in other environments depends on added protection as specified by applicable standards. It accommodates wire sizes from #4 AWG to 4/0 AWG and uses double set screw terminals for secure cable attachment.

Key Features of the HUBBELL Series 16 Female Receptacle:

• Amperage Rating: Rated for up to 400A (AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Cable Range: Accepts #4 AWG to #4/0 AWG conductors


• Terminal Connection Type: Double set screw design with brass contacts


• Mounting Style: Panel mount with through hole mounting hardware


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


• Housing Material: Thermoplastic elastomer construction


• Industry Standards: Complies with ANSI/NFPA 70, NEC, UL Listed, cUL Listed standards


• Single Pole Device Style: Taper nose configuration; female gender connection
