  9. Receptacle, Grn, Female, Taper, Double Set

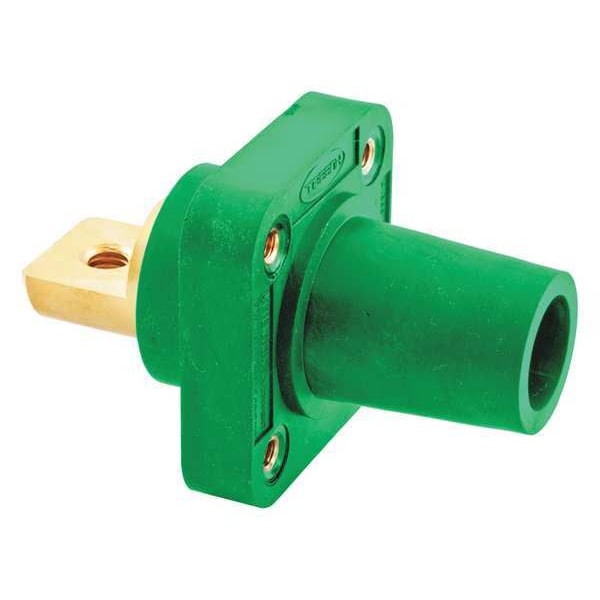

Hubbell Wiring Device-Kellems Receptacle, Grn, Female, Taper, Double Set HBLFRBGN - main

Receptacle, Grn, Female, Taper, Double Set

  • Mfr # HBLFRBGN

  • Zoro # G6182032

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRBGN
Zoro #
G6182032
UPC #
783585192659
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Length
3.57 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Material
Thermoplastic Elastomer
Amps AC/DC
300/400AC/DC
Mounting
Threaded Hole
Fits
UL1691
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Color
Green
Cable Range
4 to 4/0
Single Pole Device Style
Taper Nose
Amps AC
400 A
Gender
Female
End Type
Taper Nose
Housing Color
Green
For Location
Indoor
Terminal Connection Type
Bus Bar
Connection Orientation
Straight
Compatible with Series
16
Mounting Style
Threaded Mounting
NEMA Enclosure Rating
12, 3R, 4X
Flange Shape
Square
Phase
Single
Housing Material
Thermoplastic Elastomer
Includes Mounting Hardware
Yes
Contact Material
Brass
Number Of Poles
1-Pole
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Wattage
240000
Style
Bus Bar Mount Female
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Connectivity
Screw Terminals
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Current / Amperage Rating
400 A
Item Type
Flanged Single
Application
High Ampacity Connections
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware
Screw Mounting

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Female Bus Receptacle
• 300/400A 600V AC/DC
