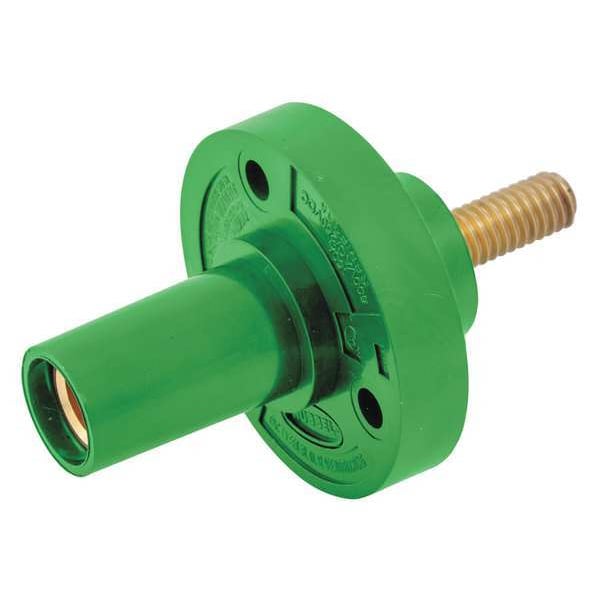

Receptacle, Stud, Grn, Female, Taper
Mfr # HBL15FRSGN
Zoro # G6069804
Key Features
Specifications
Product Information
Dimensions
Description
The HUBBELL Receptacle, Stud, Green, Female, Taper is a single pole device suitable for use in industrial settings where temporary electrical power distribution is needed. This female receptacle includes a threaded stud termination and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and supports up to 150 amps at 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer; intended for use in indoor dry locations unless otherwise protected.
Key Features of the HUBBELL Receptacle, Stud, Green, Female, Taper:
- Amperage Rating: Rated for up to 150 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Connection Type: Threaded stud terminal connection with through hole mounting style
- Compatible Series: Designed for use with Series 15 single pole devices
- Contact/Conductor Material: Brass contacts and conductor material
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed; cUL Listed; ANSI/NFPA 70; National Electric Code (NEC)
- Cable Accommodation: Accepts #8 to #2 AWG wire sizes (#4 AWG Type SC/PPC recommended)
- Pole Configuration: Single-pole device with straight connection orientation
