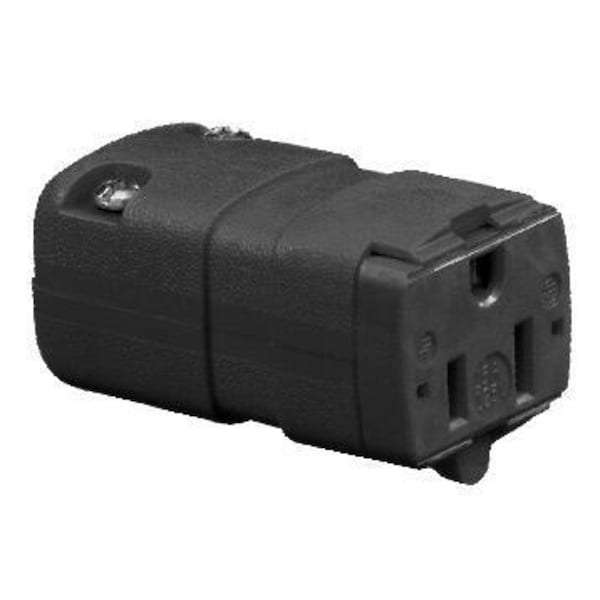

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black

Mfr # HBL5963VBK
Zoro # G000701416

13.69

Key Features

NEMA Receptacle Configuration

5-15R

Current Rating

15 A

Voltage Rating

125V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL5963VBK
Zoro #: G000701416
UPC #: 783585019680
Country of Origin: United States

Dimensions

For Maximum Cable Diameter: 0.72 in
For Minimum Cable Diameter: 0.23 in
Cord Size: 0.230-0.360 in
Maximum Wire Size: 12 AWG
Minimum Wire Size: 18 AWG
Display Size: Standard
Wire Size: #18 AWG to #16 AWG

Details

Item: Straight Blade Connector
NEMA Receptacle Configuration: 5-15R
Current Rating: 15 A
Voltage Rating: 125V AC
Phase: Single
Number of Poles: 2
Number of Wires: 3
Wire Connection Type: Screw Terminals
Wiring Style: Hinged
Connection Orientation: Straight
Grounding: Grounded
Housing Color: Black
Cap Type: No Cap or Cover
IP Rating: IP20
Standards: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280, UL 94 HB or better Flammability, NEMA
Resistance Properties: Moisture Resistant
Material: Nylon
Special Features: Insulation Displacement; IP20 Moisture Resistance
Application: Industrial/Commercial
Weight: 0.1 lb
Maximum Operating Temperature: 75 deg C
Dielectric Strength: Withstands 2,000V minimum.
Contact Material: Brass
Minimum Operating Temperature: -40 Degrees C
OEM Brand Name: Hubbell Wiring Device-Kellems
Conductor Range: #14 AWG to #12 AWG
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Cord Range: 0.230"-0.720" (5.8-18.3)
Industry Standard(s): CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-16 AWG. Stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum: 0.5
Material - Mounting Hardware: Cord Mounted
Insulation: Insulated Body
Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Female ConnectorBody, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 125V , 15A 5-15R, Black, Single Pack
