  6. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

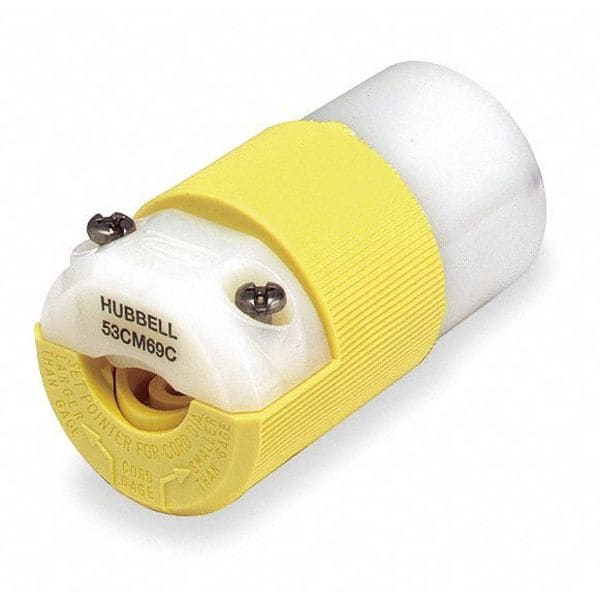

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow HBL53CM69C - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL53CM69C

  • Zoro # G1664844

product price:  $49.85
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL53CM69C
Zoro #
G1664844
UPC #
783585161808
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
For Maximum Cable Diameter
0.36 in
Maximum Wire Size
10 AWG
Overall Length
2.78 in
For Minimum Cable Diameter
0.23 in
Minimum Wire Size
18 AWG
Dimensions
2.78 in x 1.52 in x 2.78 in
Length
2.78 in
Wire Size
#18 AWG to #10 AWG
Height
2.78 in
Width
1.52 in
Display Size
Standard

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Corrosion Resistant
Corrosion Resistant
Yes
Power Indicator
No
Voltage
125VAC
Grade
Marine
Material
Nylon
Antimicrobial
No
Special Features
Corrosion resistant
Power Indicating Light
No
For Location
Indoor
Polarized
Yes
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Insulation Material
Nylon
Horsepower Rating
1 hp
Market
Commercial, Industrial
For Environment
Dry
Dielectric Strength
Withstands 2,000V minimum.
Weight
0.25 lb
Grade - Plugs and Receptacles
Marine
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Style
Corrosion Resistant
Conductor Range
#14 AWG to #12 AWG
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
Insulgrip
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.230"-0.360" (5.8-18.3)
Insulation
Insulated Body
Application
Industrial/Commercial
Nema Rating
5-20R

Description

• Individual wiring terminals completely enclosed
• Powerful, offsetting cord grips clamp on individual conductors
• Roomy wiring chamber provides ample space for wiring
• Corrosion Resistant
