  11. Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

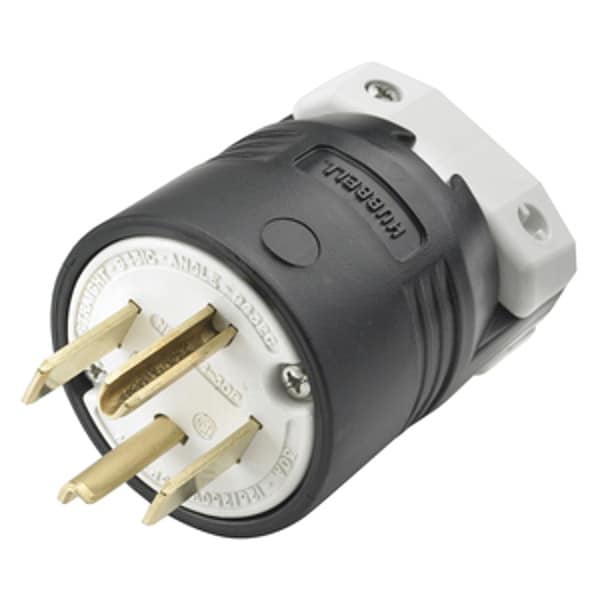

Hubbell Wiring Device-Kellems Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded HBL9431C - main

Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL9431C

  • Zoro # G1177513

product price: $85.89
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
14-30P
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9431C
Zoro #
G1177513
UPC #
783585015309
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Maximum Wire Size
4 AWG
Body Length
4.13 in
Outside Diameter
2.88 in
Minimum Wire Size
12 AWG
Dimensions
4.13 in x 2.88 in x 2.88 in
Wire Size
#12 AWG to #4 AWG
Width
2.88 in
Height
2.88 in
Length
4.13 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Boot Code
C
NEMA Plug Configuration - Plugs and Receptacles
14-30P
Material
Nylon
HP
2.0 Line to Line, 2.0 Line to Neutral
Number of Wires
4
Grade
Industrial
Voltage
125/250VAC
Special Features
Corrosion resistant
Antimicrobial
No
Phase - Plugs and Receptacles
3
Grade - Plugs and Receptacles
Industrial
Corrosion Resistant
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Housing Material
Nylon
Horsepower Rating
2 hp
UL 94 Flammability Rating
HB
Market
Commercial, Industrial
Insulation Material
Nylon
Blade Holder Material
Glass Reinforced PET
Body Style
Straight
Dielectric Strength
Withstands 2,000V minimum
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Horsepower - Maximum
2
Box Terminals Material
Copper
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Contact Blade Material
.075" Brass
Terminal Screw Material
Steel - Zn plated
Cord Clamp Material
Glass Reinforced Polyester
Retainer Material
Glass Reinforced PET
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
7500 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.625"-1.310"
Contact Blades Material
.100" Brass
Weight (Lbs.)
0.85
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
3/8" Allen Head, Plated Steel

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 30 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
