  11. Straight Blade Plug, 18-60P, 60 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded

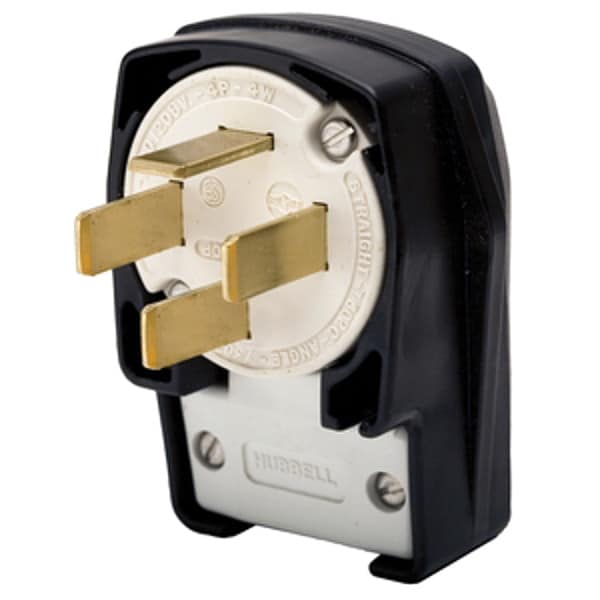

Hubbell Wiring Device-Kellems Straight Blade Plug, 18-60P, 60 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded HBL7302C - main

Straight Blade Plug, 18-60P, 60 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL7302C

  • Zoro # G1340577

product price: $132.44
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
18-60P
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7302C
Zoro #
G1340577
UPC #
783585015378
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Body Length
4.13 in
Outside Diameter
2.88 in
Width
2.88 in
Height
2.88 in
Dimensions
4.13 in x 2.88 in x 2.88 in
Length
4.13 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
18-60P
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
UL 498
Resistance Properties
Corrosion Resistant
Number of Wires
4
HP
7.5
Antimicrobial
No
Grade
Industrial
NEMA Plug Configuration - Plugs and Receptacles
18-60P
Corrosion Resistant
Yes
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Industrial
Material
Nylon
Voltage
120/208VAC
Phase - Plugs and Receptacles
3
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
7 1/2 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Polarized
Yes
Market
Commercial, Industrial
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Retainer Material
Glass Reinforced PET
Cord Clamp Material
Glass Reinforced Polyester
Horsepower - Maximum
7.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Blade Holder Material
Nylon
Body Style
Angle
Cord Range
0.625"-1.310"
Flammability
UL 94 HB or better.
Contact Blades Material
.075" Brass
Weight (Lbs.)
0.8
Box Terminals Material
Copper
Industry Standard(s)
UL Listed, File E2186, Listed To UL Standard 498
Terminal Screw Material
3/8" Allen Head, Plated Steel
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Strength
Withstands 2,000V minimum.

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 60 A, Grounding Non-Grounded, Horsepower Rating 7 1/2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 18-60P, Number of Blades 4, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
