  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

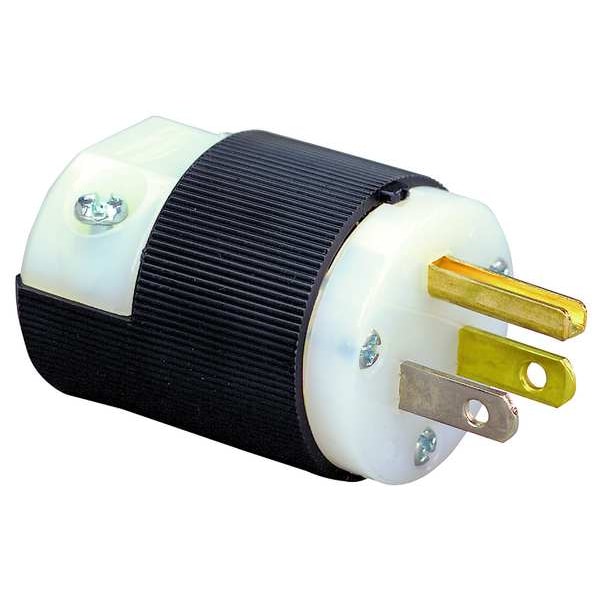

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5266C - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5266C

  • Zoro # G2165773

product price: $18.83
/ea

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5266C
Zoro #
G2165773
UPC #
783585173009
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Outside Diameter
1.52 in
Body Length
1.52 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
HP
0.5
Voltage
125VAC
NEMA Configuration
5-15
Special Features
Corrosion resistant
Phase - Plugs and Receptacles
1
Antimicrobial
No
Corrosion Resistant
Yes
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Grade
Industrial
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Material
Nylon
NEMA Rating
WD-6; 5-15P
Insulation Material
Nylon
Market
Commercial, Industrial
Polarized
Yes
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
HB
Housing Material
Polycarbonate
Maximum Operating Temperature
167 Degrees F
Housing Material Finish
Nickel Plated
Minimum Operating Temperature
-40 Degrees F

Description

The HUBBELL Straight Blade Plug is a male, straight connection plug suitable for use in commercial and industrial electrical systems. It features a 2-pole, 3-wire configuration with a NEMA 5-15P rating and supports up to 15 amps at 125 volts AC. The plug includes a ribbed nylon housing with nickel-plated polycarbonate finish.


Key Features of the HUBBELL Straight Blade Plug:

  • Current/Voltage Rating: Rated for 15 A at 125V AC

  • NEMA Configuration: 5-15P (2-pole, 3-wire grounded)

  • Cord Accommodation: Accepts cord diameters from 0.23 in to 0.72 in

  • Housing Material: Ribbed nylon with nickel-plated polycarbonate finish

  • Cable Clamp: VARI-SIZE adjustable cord clamp accommodates various cable sizes

  • Wire Size Compatibility: Supports wire sizes from 18 AWG to 10 AWG via screw terminals

  • Operating Temperature Range: -40°F to +167°F

  • Standards Compliance: CSA Certified C22.2 No.42 File 280; Federal Specification W-C-596G; NEMA WD-6; UL498 File E1706
