  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

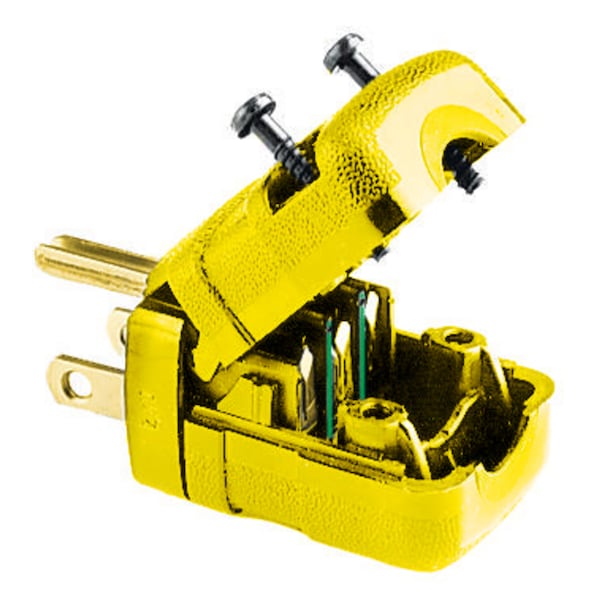

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5966VY - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5966VY

  • Zoro # G800701548

product price: $7.15
/ea
Sold in multiples of 2 for $14.30

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5966VY
Zoro #
G800701548
UPC #
783585019420
Country of Origin
United States

Dimensions

Cord Size
.230"-.360" (5.8-9.1)
Wire Size
#18 AWG to #16 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP66, IP67, IP69K
Standards
CSA C22.2, UL 498
Material
Polycarbonate
Grade
Insulation Displacement Valise
Special Features
Certified for current interrupting at full rated current.
HP
0.5
Number of Wires
3
Application
Industrial/Commercial Grade
Enhancement
Insulation Displacement
Body Material
Impact Modified Nylon
Housing Material
Nylon
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Material
Solid Brass
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Environment
Dry
Body Style
Straight
Ground Contact Blade Material
.040" Brass
Cord Clamp Material
Nylon
Weight (Lbs.)
0.05
Contact Blades Material
.060" (1.5) Brass
Dielectric Strength
Withstands 2000V per UL498
Flammability
Rated HB or better UL94
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-16 AWG. Stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
2
Number of Blades
3

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, ValiseSeries, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding,15A 125V, 5-15P, Yellow, Single Pack, ID
