  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

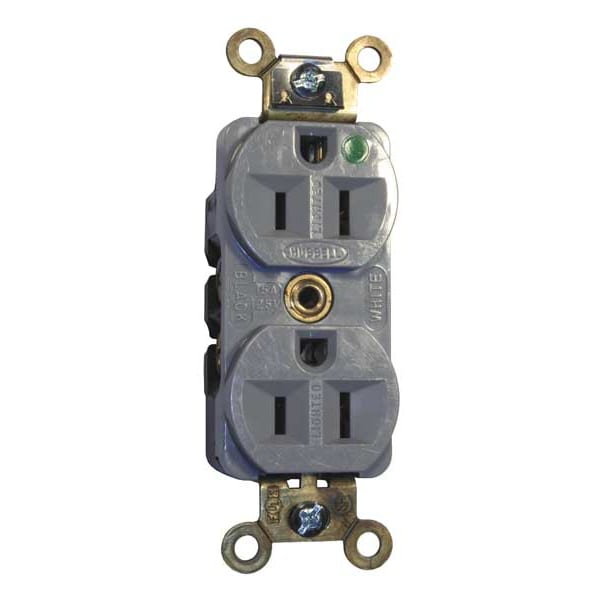

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200ILGY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200ILGY

  • Zoro # G3060111

product price:  $51.59
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200ILGY
Zoro #
G3060111
UPC #
783585016443
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Display Size
Standard Sized Product
Height
1.05 in
Width
1.33 in
Length
3.28 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Special Features
Illuminated
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
No
Material
Polycarbonate
Outlet Type
Duplex
Application Environment
Heavy Use Hospital Grade
Weather Resistant
No
Corrosion Resistant
No
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Tamper Resistant
No
Power Indicator
No
Carton Quantity
10
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Series
Hospital Grade
UPC
783585000000
Application
Extra Heavy Duty Hospital Grade
Mounting Hardware Material
Screw Mounting
Weight
0.25 lb
Amperage
15 A
Nema Rating
5-15R
Style
Finder Groove Face
Brand
Hubbell Wiring Device-Kellems
Maximum Horsepower
0.5
Type
Receptacle
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Wattage
1875 W
Connectivity
Back and Side Wired Screw Terminals
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Cover Type
No Cover
Includes Mounting Hardware
Yes
Surge Protection
No
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
For Location
Indoor
Grade
Hospital Grade Fed. Spec.
Shrouded
No
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-0
NEMA Enclosure Rating
1
Housing Material
Polycarbonate
GFCI
No
Device Color
Gray
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94V-2
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Grade
Heavy Duty Spec Grade
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
• Entire face illuminated by two LEDs
