  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

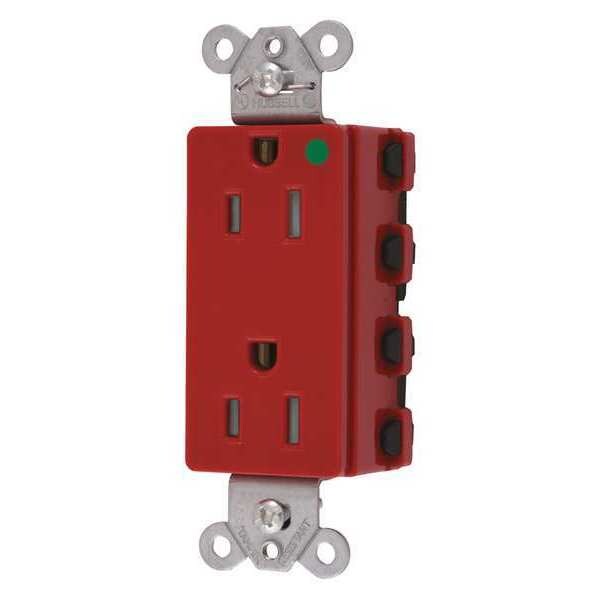

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP2172RTRA - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2172RTRA

  • Zoro # G4571799

product price:  $26.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2172RTRA
Zoro #
G4571799
UPC #
783585552200
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Length
3.28 in
Wire Size
#12 AWG
Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Weather Resistant
No
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
NEMA Configuration
5-15
Power Indicator
No
HP
1/2 hp
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
NEMA Rating
1
Wiring Method - Plugs and Receptacles
Modular
Sub-Category
Duplex Receptacles
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Surge Suppression
No
Outlet Type
Duplex
Wiring Method
Back
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
GFCI
No
Market
Commercial
AFCI
No
Cover Type
No Cover
Housing Material
Nylon
Contact Material
Brass
Includes
Wall Plate or Weatherproof Cover
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Shrouded
No
Horsepower Rating
1/2 hp
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Surge Protection
No
NEMA Enclosure Rating
1
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
Series
Hospital Grade
Wattage
1875 W
Application
Hospital Grade
Style
Style Line Decorator
Dielectric Strength
Withstands 2,000V minimum
Number Of Conductors
3-Wire Grounding
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Audible SNAP, indicates solid connection
• Reduces installation time
• Tamper-Resistant
• Assembled in USA
