  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

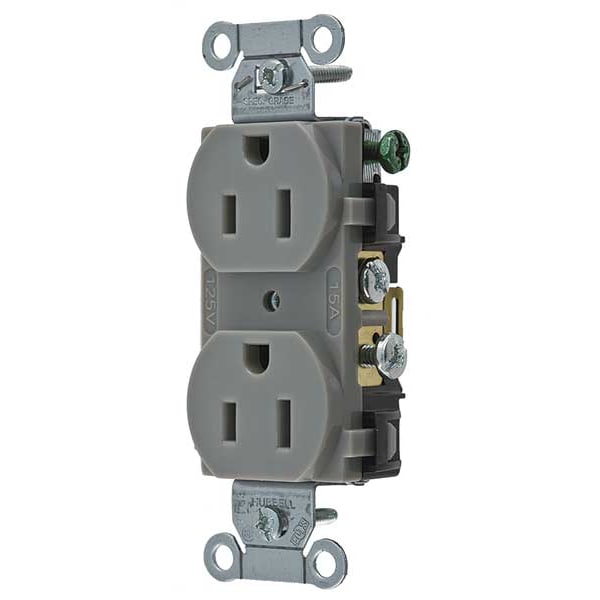

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground CR15GRY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # CR15GRY

  • Zoro # G1824444

product price:  $3.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15GRY
Zoro #
G1824444
UPC #
783585900025
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
3.3 in
Display Size
Standard Sized Product
Dimensions
1.32 in x 0.83 in x 3.28 in
Wire Size
#14 AWG to #10 AWG
Height
3.28 in
Length
1.32 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Corrosion Resistant
No
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant
No
NEMA Configuration
5-15
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Voltage
125VAC
Sub-Category
Duplex Receptacles
Mounting Type
Flush
Tamper Resistant
No
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Type
Duplex
Key Resistance Properties
Standard Resistance
Primary Resistance Properties
15 A
Cover Type
No Cover
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Wire Connection Types
Screw Terminals
For Location
Indoor
AFCI
No
Contact Material
Brass
Additional Electrical Protection
Standard Protection
Housing Material
Nylon
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial
Polarized
Yes
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Grade
Federal Specification
GFCI
No
NEMA Enclosure Rating
1
Number of Poles & Wires
2 Pole / 3 Wire
Shrouded
No
Mounting Screw Material
Steel-Zinc Plated
Base Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Face Style
Smooth Face
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Device Color
Gray
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
0.5
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
.032" (.8) Steel Wire
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
15A, 125V
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
Commercial Series Specification Grade
Top Material
Nylon
Power Contacts Material
.031" (.8) Phosphor Bronze
Mounting Strap Material
.040" (1) Steel (Galvanized)
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Style
Duplex
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Traditional
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Style
Smooth Face
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Series
Commercial Specification Grade
Application
Commercial Specification Grade
Nema Rating
5-15R
Wattage
1875 W

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
