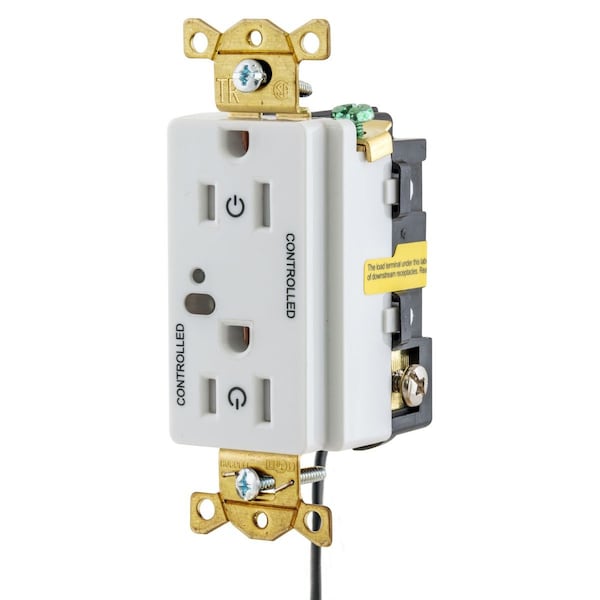

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded
Mfr # HBL5262LC2W
Zoro # G000622421
product price: $94.65
/ea
Free Shipping & Returns
Key Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
HBL5262LC2W
Zoro #
G000622421
UPC #
783585427713
Country of Origin
China
Dimensions
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Details
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Standards
Fed. Spec. WC596G, NEMA WD-6, cULus 498B SA
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Operating Temperature
0° to 40°C Relative Humidity (non-condensing) 0% to 95% (w/o impact)
Series
Switched Receptacles
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Style
Wired
Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacle,Duplex, Load Control, Full Controlled, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, White
