  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

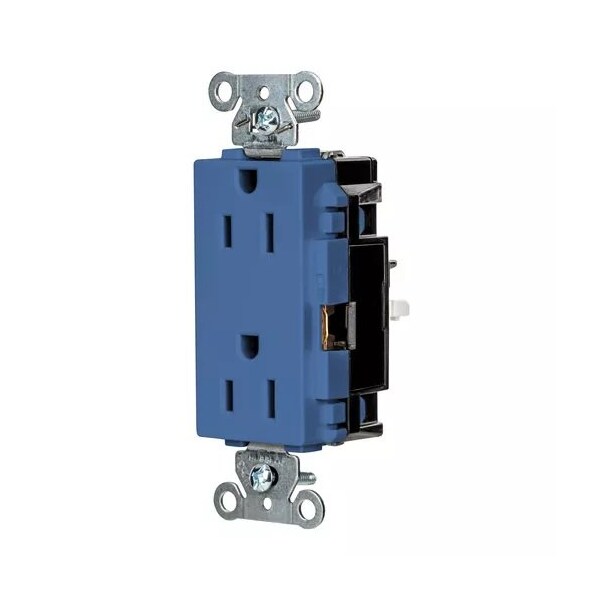

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR15STBL - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR15STBL

  • Zoro # G410986205

product price: $7.59
/ea
Sold in multiples of 100 for $759.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15STBL
Zoro #
G410986205
UPC #
783585728070
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Face Plate Height
2.8 in
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Blue
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Hardware
Market
Commercial
Shrouded
No
Horsepower Rating
1/2 hp
Visual Indicator Lights
Power Connected
Number of Gangs
1
Grade
General Use
Number of Outlets
2
Contact Material
Copper Alloy
For Environment
Dry
Surge Protection
No
Housing Material
Thermoplastic
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Hub Type
Feed Through
Includes Mounting Hardware
Yes
Polarized
Yes
NEMA Enclosure Rating
1
GFCI
No
AFCI
No

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
