  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

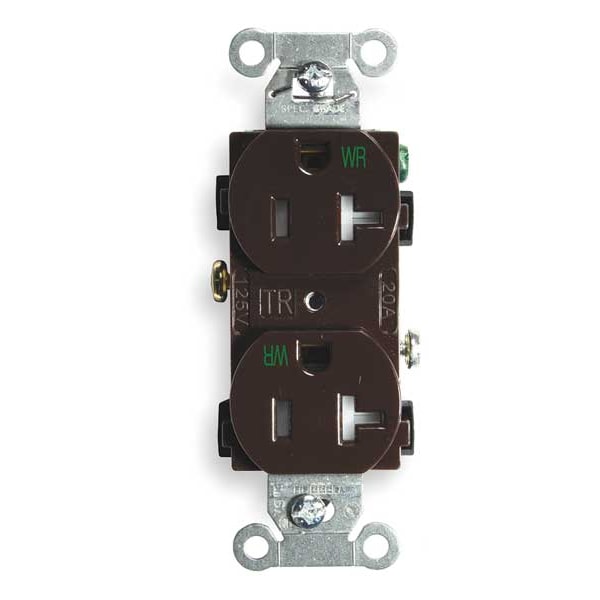

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20WRTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20WRTR

  • Zoro # G2054236

product price: $10.94
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20WRTR
Zoro #
G2054236
UPC #
783585144672
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
Yes
Application Environment
Commercial
NEMA Configuration
5-20
Tamper Resistant
Yes
Voltage
125VAC
Surge Suppression
No
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
Number of Gangs
1
Weather Resistant
Yes
Type
Duplex
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Brass
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
GFCI
No
NEMA Enclosure Rating
1
Connection Orientation
Straight
Grade
Federal Specification
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Market
Commercial, Industrial
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Polarized
Yes
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Nylon
Receptacle Grade
Specification Grade Commercial Series, Tamper and Weather Resistant
Face Shape
Traditional
Mounting Strap Material
.040" (1) Steel (Galvanized)
Top Material
Nylon
Rating
20A, 125V
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
1
Mounting Screw Material
Steel-Zinc Plated
Receptacle Style
Duplex
Device Color
Brown
Dielectric Voltage
Withstands 2,000V minimum
Auto Ground Clip Material
Stainless Steel
Flammability
UL 94 V2.
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Weather Resistant
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
2500 W
Series
Commercial Specification Grade
Style
Smooth Face
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
5-20R
Application
Commercial Specification Grade
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

• Weather-resistance complies with national electrical code requirements
• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel strap
